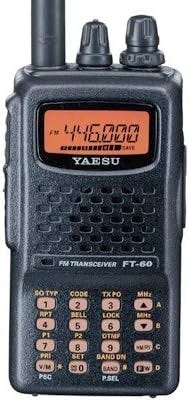

In-Depth Review: Yaesu FT-60R Dual-Band Handheld 5W VHF/UHF Amateur Radio Transceiver
In-Depth Review: Yaesu FT-60R Dual-Band Handheld 5W VHF/UHF Amateur Radio Transceiver
The Yaesu FT-60R is a dual-band handheld transceiver that has earned a solid reputation in the amateur radio community. Known for its durability, ease of use, and solid performance, the FT-60R has become a staple for both newcomers and seasoned operators. In this review, we’ll take a comprehensive look at the FT-60R, covering its features, performance, build quality, ease of use, and overall value to help you determine if this transceiver is the right fit for your ham radio needs.
Key Features at a Glance:
Frequency Range:
VHF: 144-148 MHz (2m Band)
UHF: 430-450 MHz (70cm Band)
Power Output:
5 Watts (High)
2.5 Watts (Mid)
0.5 Watts (Low)
Channel Memory:
200 Channels
50 CTCSS/DCS codes
Display:
Dual VFO (Variable Frequency Oscillator) operation (allows monitoring two frequencies simultaneously)
Backlit LCD display for easy nighttime visibility
Battery:
1400 mAh NiMH rechargeable battery pack
Battery life depends on usage, but with moderate usage, you can expect around 10–12 hours of operation
Size and Weight:
Dimensions: 5.7 x 2.3 x 1.2 inches (145 x 58 x 30 mm)
Weight: 9.2 ounces (260 grams) including the battery
Build Quality:
MIL-STD-810 rugged construction
Water-resistant, with IPX5 certification for light splashing
Additional Features:
Wideband reception (covers not just amateur bands, but also air band, FM radio, and more)
Automatic repeater shift (ARS) for easy repeater operation
DTMF encoder
Adjustable squelch, selectable tone frequencies, and more
Design & Build Quality: 8/10
The Yaesu FT-60R has a sturdy and compact design. It features a robust polycarbonate body with a soft-touch rubber coating that makes it comfortable to hold and operate. The construction is solid enough to withstand everyday wear and tear, and it carries a MIL-STD-810 certification for shock resistance and water resistance, making it a reliable companion even in adverse conditions. While it’s not fully submersible, its IPX5 rating means it can withstand rain and light splashes.
The front panel is well-organized, with easy-to-press buttons that feel tactile without being too stiff. The large LCD display is clear, bright, and features dual VFO functionality, allowing you to monitor two frequencies simultaneously. This is particularly useful for operators who want to keep an eye on a local repeater and a simplex frequency at the same time.
The Yaesu FT-60R is slightly on the heavier side for a handheld, especially when compared to some ultra-portable models. However, this extra weight is indicative of the rugged build quality, and many users appreciate the solid feel of the radio in their hands. The inclusion of a belt clip helps with portability, but considering the weight, you might want to use an optional shoulder strap for more comfort during extended usage.
User Interface & Controls: 9/10
One of the strongest aspects of the FT-60R is its user-friendly interface. Yaesu has designed the radio with the needs of both beginners and experienced operators in mind. The layout of the keypad and display is intuitive, and most functions are accessible through a series of dedicated buttons and menus.
The radio offers dual VFOs, allowing you to listen to two different frequencies simultaneously. This feature is particularly useful in a variety of situations, such as monitoring a repeater and the surrounding activity on another frequency. You can easily toggle between the VFOs, or use the “Dual Watch” function to monitor both frequencies at the same time.
The large LCD display features clear labeling for frequency, mode, battery status, and signal strength. The backlight is sufficiently bright and adjustable, ensuring visibility even in low-light conditions. The buttons are reasonably sized, though those with larger fingers may find them a bit cramped at first. Still, with practice, the layout becomes second nature.
Performance: 8/10
The FT-60R shines when it comes to performance, particularly for a handheld radio in this price range. It provides solid reception and transmission on both the VHF (2m) and UHF (70cm) bands. The radio's wideband receive capabilities are a bonus, as it covers a range from 108 MHz (airband) to 999 MHz, making it suitable for a wide variety of applications beyond just ham radio.
The transmission output is adjustable from 0.5W on low power to 5W on high power, which should be enough for most local communications. The FT-60R has good battery life for its class, lasting between 10 to 12 hours on a single charge with moderate usage. If you're out in the field for an extended period, it's easy to carry spare batteries or a portable power pack, as the radio uses a common type of battery pack.
As far as audio quality, the FT-60R delivers clear, crisp audio on both transmission and reception. The built-in speaker is loud enough to be heard over background noise, though it’s not as powerful as some other radios. It is more than adequate for casual conversations, but you may need an external speaker for high-noise environments.
Repeater Operation & Features: 9/10
The FT-60R excels in repeater operation, with automatic repeater shift (ARS), which makes tuning into repeaters quick and easy. Repeater operation is a major feature for many users, and Yaesu has ensured that it is simple to program and use.
The radio supports both simplex and duplex (repeater) operations, and programming repeaters into memory channels is straightforward. The inclusion of a Dual Tone Multi-Frequency (DTMF) encoder makes it easy to access repeaters that require a tone to activate, which is common in many areas. The adjustable squelch function helps eliminate interference and ensures clear reception when the signal is weak.
The FT-60R can store up to 200 channels, including repeater frequencies, local simplex frequencies, and weather channels, all of which can be quickly accessed through the memory bank.
Battery Life & Charging: 7/10
The FT-60R uses a 1400 mAh NiMH rechargeable battery, which provides decent performance for most ham radio operators. Depending on usage, you can expect around 10-12 hours of operation on a full charge, with the battery life dropping if you're using the radio at higher power levels or continuously transmitting.
The included charging cradle is convenient for at-home use, though it's important to note that the charging time can be longer compared to some newer lithium-ion-based radios. If you're planning to use the FT-60R for extended outdoor activities, it may be wise to invest in a spare battery pack or an external power source.
Versatility: 8/10
The Yaesu FT-60R is a versatile radio that is suitable for a wide range of applications, from casual listening to serious amateur radio operation. It can be used not only for ham radio but also for monitoring airband frequencies, weather channels, and FM radio stations. The wideband receiver adds significant value for operators who want to explore beyond the amateur radio bands.
Additionally, the FT-60R supports various modes, including FM, AM (for airband), and NFM (narrow FM), giving operators more flexibility depending on their specific needs.
Value for Money: 8.5/10
At its price point, the FT-60R provides excellent value for both entry-level and intermediate amateur radio enthusiasts. It offers solid performance, reliable build quality, and a wide range of features that make it versatile for different types of communication. The ease of use, along with its ability to handle both VHF and UHF frequencies, makes it a great choice for anyone looking for a dual-band handheld radio.
While it’s not the most feature-packed radio available (especially when compared to newer models with touch screens or more advanced digital modes), it strikes a balance between simplicity and functionality, making it ideal for those who need a dependable radio without overwhelming complexity.
Pros:
Solid build quality with MIL-STD-810 ruggedness and IPX5 water resistance
Dual-band VHF/UHF operation with wideband receive capabilities
Easy-to-use interface with dual VFOs and memory channel storage
Strong repeater and simplex performance
Clear audio with decent battery life for most users
Affordable for a dual-band handheld
Cons:
NiMH battery could be limiting for extended outdoor use
Somewhat bulky and heavier compared to newer ultra-portable models
Speaker volume is adequate, but could be louder for noisy environments
Charging time is longer compared to modern lithium-ion models
Final Thoughts: 8.5/10
The Yaesu FT-60R is a solid, reliable dual-band handheld transceiver that strikes a great balance between performance, build quality, and value for money. While it might not have the advanced features of more expensive or newer models, its straightforward design and solid performance make it a great option for both new and experienced amateur radio operators. If you're looking for a durable, easy-to-use, and capable radio for everyday communication, the FT-60R is a worthy contender.
