Introduction

The Anytone AT-D890UV is one of the more ambitious handheld amateur radios to appear in the AnyTone lineup. Rather than being simply another dual-band DMR handheld, the AT-D890UV combines VHF and UHF operation, DMR and analog FM, true dual-slot DMR operation, dual-frequency monitoring, GPS, APRS, Bluetooth, air-band AM reception, cross-band repeater capability, analog scrambling and companding, USB Type-C charging, and a large digital-contact capacity.

The result is a radio aimed at operators who want substantially more capability than a conventional entry-level handheld can provide.

The AT-D890UV is designed around the familiar AnyTone philosophy of putting a tremendous number of functions into a relatively compact handheld. It supports up to 4,000 channels, 10,000 talk groups and as many as 500,000 digital contacts, while offering four selectable power levels. Current documentation lists up to 7 watts on VHF and 6 watts on UHF.

For an amateur radio operator who enjoys DMR, satellite work, APRS, emergency communications, portable operation, or experimenting with cross-band systems, the AT-D890UV is an especially interesting radio.

What Is the AT-D890UV?

The AT-D890UV is a dual-band handheld transceiver covering the amateur VHF and UHF bands, with both analog FM and digital DMR capability.

In the United States, the published amateur-band coverage is approximately 136-174 MHz on VHF and 400-480 MHz on UHF, although exact coverage varies by regional version and programming configuration. The radio also provides receive capability outside the amateur bands, including FM broadcast and aircraft-band AM reception.

The DMR side of the radio complies with ETSI Tier I and Tier II specifications and uses two-slot TDMA operation. This means a single 12.5 kHz RF channel can carry two logical communication paths using separate time slots.

That makes the AT-D890UV useful for both local DMR repeaters and hotspot operation.

The radio also automatically detects digital or analog reception when appropriately configured, making mixed-mode channel programming considerably more convenient.

Major Features

The feature list is where this radio becomes particularly impressive.

Among its most important capabilities are:

Dual-band VHF/UHF operation

Analog FM

DMR Tier I and Tier II

True two-slot DMR

Up to 7 watts VHF output

Up to 6 watts UHF output

Four selectable power levels

Up to 4,000 channels

Up to 10,000 talk groups

Up to 500,000 digital contacts

Color TFT display

Dual-frequency display

Dual standby

GPS

APRS

Bluetooth

Air-band AM reception

Cross-band repeater operation

Analog scrambler

Analog compander

DTMF, CTCSS and DCS

SMS and digital messaging

DMR roaming

VOX

Digital recording and playback

USB Type-C battery charging

These specifications place the AT-D890UV well above a basic inexpensive handheld in terms of functionality.

Build Quality and Physical Design

The AT-D890UV follows the familiar rugged handheld-radio design that AnyTone has used on previous DMR models.

It is not an ultra-small radio designed primarily for slipping into a pocket. Instead, it has the substantial feel expected from a feature-rich amateur transceiver.

That is actually an advantage for many operators.

A larger handheld provides room for a larger display, physical controls, a larger battery and a more substantial speaker. These things matter when operating outdoors, wearing gloves, or trying to change settings without constantly looking down at a tiny screen.

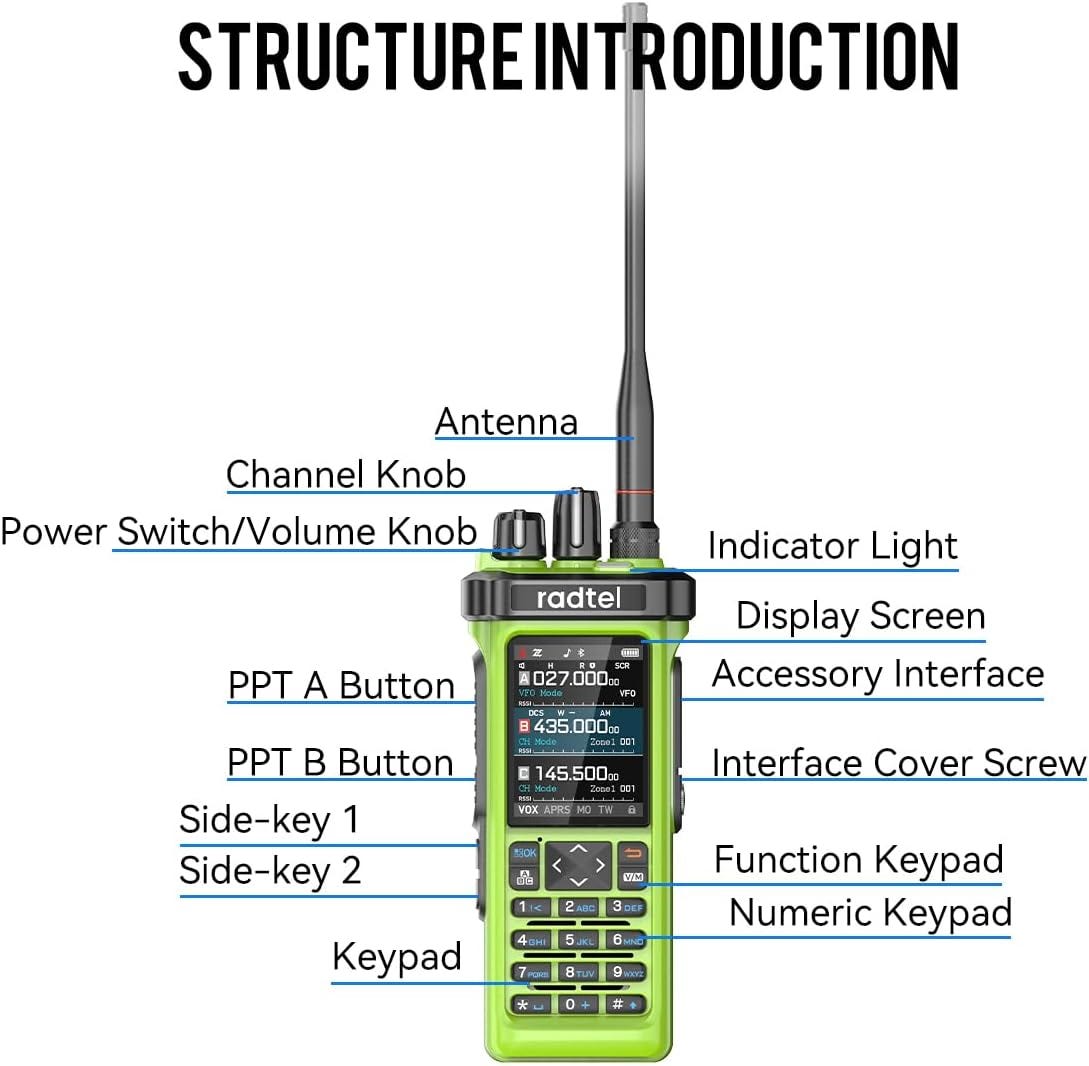

The radio’s controls are designed around a combination of physical buttons, programmable function keys, a rotary control and the color display.

The programmable keys are particularly useful because the radio has so many functions that navigating through menus for every operation would become frustrating.

The Color Display

One of the most noticeable improvements is the 1.77-inch color TFT display.

The display can show information for two channels and supports the radio’s dual-standby functionality.

For DMR users, this is particularly helpful because a channel can involve considerably more information than simply a frequency.

Depending on configuration, the operator may need to know:

Channel name

Frequency

Talk group

Color code

Time slot

Contact information

Signal information

Battery status

GPS information

The color display makes the radio feel considerably more like a modern communications computer than an old-fashioned walkie-talkie.

DMR Performance

DMR is arguably the main reason many operators will consider the AT-D890UV.

The radio supports DMR Tier I and Tier II and true two-slot operation. DMR uses TDMA technology to divide a single RF channel into two time slots, allowing two separate communication paths to share the same frequency.

For an operator already using DMR repeaters, this provides compatibility with a large ecosystem of amateur DMR systems.

The large contact capacity is another major advantage.

The AT-D890UV can accommodate up to 500,000 digital contacts and 10,000 talk groups. That is vastly more than most operators will ever need.

For someone who travels frequently and maintains a large codeplug containing repeaters, talk groups and contacts from different regions, however, that capacity can become genuinely useful.

Analog FM Operation

Despite the emphasis on DMR, the AT-D890UV remains a capable conventional analog FM handheld.

This is important because analog FM remains extremely common in amateur radio.

Many local repeaters are analog, and simplex communication is often analog as well. During an emergency or public-service event, analog FM can also be useful because it provides interoperability with a huge number of existing VHF and UHF radios.

The AT-D890UV supports common analog signaling methods including CTCSS and DCS, along with DTMF, 2-tone and 5-tone functions.

The ability to switch between DMR and analog means one radio can cover a surprisingly broad range of communications tasks.

Air-Band AM Reception

One of the features that makes the AT-D890UV particularly interesting is its air-band AM receiver.

The radio can receive aircraft communications, including aviation communications in the approximately 108-136 MHz range.

This does not turn the AT-D890UV into an aviation transceiver. The important distinction is that the air-band capability is receive-only.

For an amateur radio operator, however, it can be extremely useful.

You can monitor:

Aircraft communications

Air traffic control

Airport traffic

Aviation activity

Nearby aircraft

Emergency aviation communications

This is especially valuable for portable operators who enjoy monitoring a broad range of radio activity.

It also makes the radio attractive for emergency-preparedness applications because aviation communications can provide useful situational information in certain circumstances.

Cross-Band Repeater Capability

Perhaps the most unusual feature of the AT-D890UV is its cross-band repeater capability.

The radio can receive on one band and transmit on the other, effectively turning the handheld into a small cross-band repeater.

The documentation describes operation between VHF and UHF, including configurations involving analog and DMR operation.

This is a major capability for a handheld.

Imagine an operator carrying a small VHF handheld while another radio or group of operators is working on UHF. A properly configured AT-D890UV can provide a bridge between the two bands.

This can be useful for:

Portable communications

Emergency communications

Search-and-rescue exercises

Field events

Remote operating locations

Temporary communication networks

Extending the usefulness of a handheld station

The repeater function does have limitations, however.

The radio needs both channels configured correctly, and certain combinations require the two sides to be on different bands. The programming documentation also explains that the radio enters a locked operating state while functioning as a repeater.

Therefore, the cross-band function should be viewed as a valuable temporary or portable repeater capability rather than a replacement for a dedicated repeater station.

Full-Duplex Potential and Satellite Operation

Another particularly interesting aspect of the AT-D890UV is its reception architecture.

Reports and testing published by the amateur satellite community indicate that the radio can perform full-duplex VHF/UHF FM operation, making it potentially useful for satellite work.

This is an important feature for satellite operators.

With conventional half-duplex operation, transmitting on one frequency can interrupt reception on the other. Full-duplex operation allows an operator to hear the downlink while transmitting on the uplink.

That is especially valuable when working satellites where Doppler shift and frequency adjustments need to be monitored carefully.

The radio also includes satellite-related capabilities and Doppler-tracking functionality, although published testing has identified limitations concerning Doppler operation while using full-duplex mode.

For serious satellite operators, this means the AT-D890UV is worth considering, but it should not automatically be treated as a perfect replacement for a dedicated satellite transceiver.

GPS and APRS

The built-in GPS and APRS capabilities add another important dimension.

APRS allows amateur stations to transmit position and other information over amateur radio networks.

For portable operators, GPS/APRS can be particularly useful because it can allow other stations to see a station’s approximate location and can provide useful position-reporting functionality.

The AT-D890UV also supports GPS-related functions and ranging capabilities between compatible radios.

For hiking, public-service events, emergency exercises and outdoor amateur-radio activities, this can be much more than a novelty.

Bluetooth

Bluetooth is another modern feature.

The AT-D890UV includes built-in Bluetooth capability, allowing compatible wireless accessories to be used with the radio.

This can be particularly useful for operators who want to reduce the number of wires attached to the radio.

A Bluetooth PTT accessory can also make the radio easier to operate when it is mounted or carried in a position where reaching the radio’s controls is inconvenient.

Analog Scrambler and Compander

The AT-D890UV includes both an analog scrambler and compander.

The compander can improve perceived audio quality by compressing the audio signal during transmission and expanding it during reception.

This can be helpful when dealing with weaker or noisy analog communications.

The analog scrambler is different.

A basic analog scrambler is not equivalent to modern digital encryption. Operators should not assume that scrambled analog communications provide strong security or confidentiality.

It is better understood as an additional analog voice-processing feature rather than a substitute for secure communications.

The radio also supports digital encryption functions according to published specifications, but amateur-radio operators must always operate within the rules applicable to their service and jurisdiction.

USB Type-C Charging

USB Type-C charging is one of those features that sounds relatively minor until you actually use it.

Older handheld radios frequently require proprietary charging arrangements.

USB Type-C is much more convenient because compatible cables and power sources are widely available.

For portable operators, this means the radio can fit into a modern charging ecosystem involving:

Power banks

Vehicle USB chargers

Solar charging systems

Portable battery stations

Computer USB ports

Wall chargers

Preparedness kits

This is especially attractive for emergency communications because USB-C power sources are becoming nearly universal.

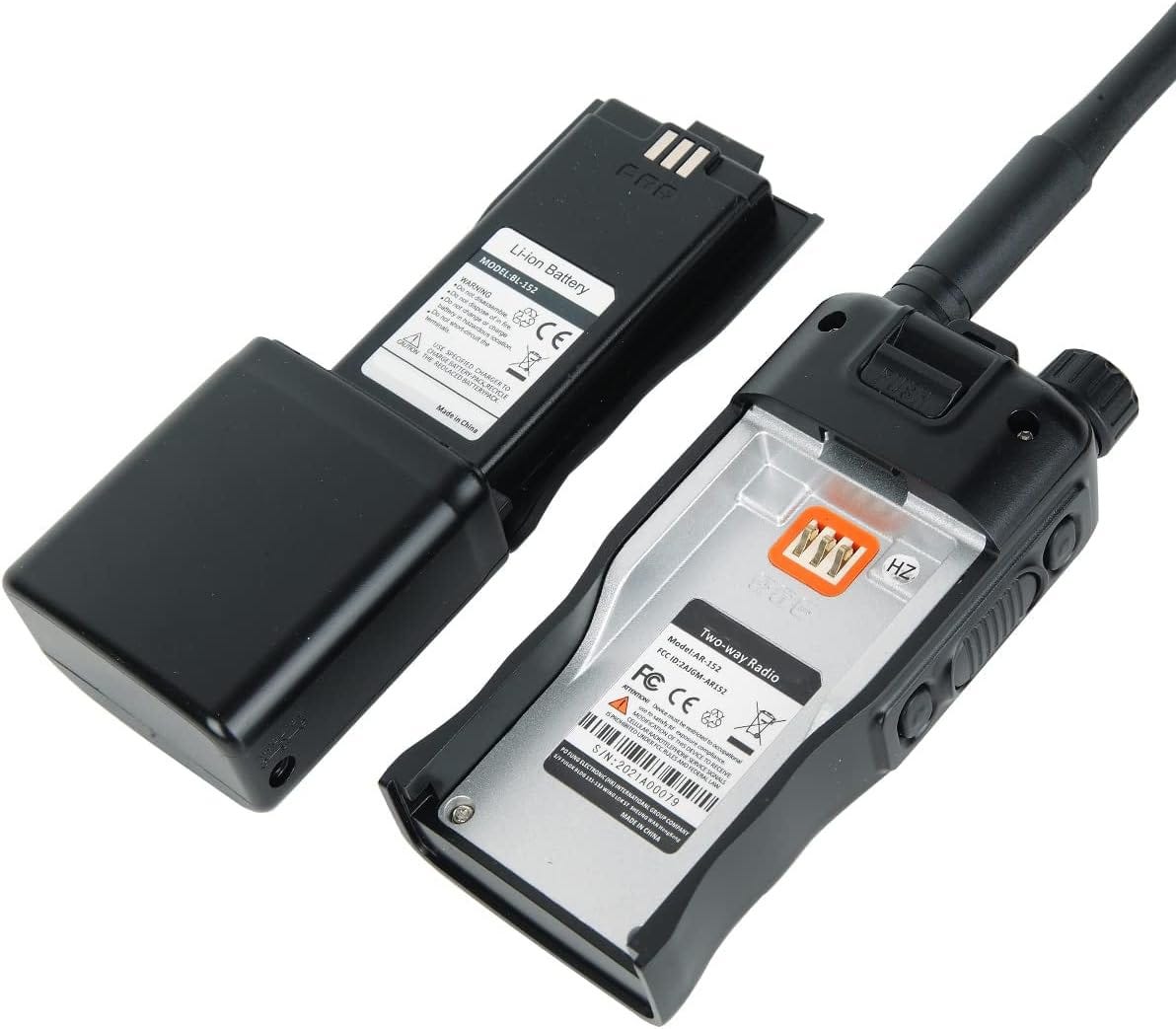

The radio is supplied with a rechargeable lithium-ion battery, with published specifications listing a 3100 mAh battery for the current version.

Battery Life

Battery performance will naturally depend heavily on how the radio is used.

Receiving continuously, transmitting frequently, operating at high power, using GPS, and using Bluetooth will consume considerably more energy than occasional low-power transmissions.

The selectable power levels are therefore important.

The published power settings are:

VHF: 7 watts, 5 watts, 2.5 watts and 0.2 watt

UHF: 6 watts, 5 watts, 2.5 watts and 0.2 watt

For everyday local communications, using the lowest practical power level is generally preferable. It reduces battery consumption and minimizes unnecessary RF energy.

For emergency or difficult portable communications, the higher settings provide additional flexibility.

Programming

The AT-D890UV is not a simple radio.

That is both one of its strengths and one of its weaknesses.

The enormous number of functions means programming requires some learning.

An operator may need to configure:

Zones

Channels

Frequencies

Talk groups

Color codes

Time slots

Contacts

Scan lists

APRS settings

GPS options

Bluetooth settings

Repeater functions

Analog signaling

Power levels

Function keys

For an experienced DMR operator, this is manageable.

For someone purchasing their first DMR radio, however, the AT-D890UV may initially feel overwhelming.

The programming guide itself is substantial and covers DMR configuration, APRS, air-band operation, optional functions, satellite reception and cross-band repeater setup.

My recommendation is to resist the temptation to program every feature immediately.

Start with a few local analog channels and DMR channels. Once those are working, gradually add talk groups, APRS, GPS, scanning and advanced functions.

Audio Performance

A handheld radio needs to produce intelligible audio, particularly outdoors.

The AT-D890UV’s relatively substantial body allows it to provide a useful speaker and physical control layout.

Digital DMR communications can sound exceptionally clean when the signal is strong enough to decode properly.

Analog FM, meanwhile, provides the familiar gradual degradation of an analog signal as reception gets weaker.

This difference is worth remembering.

DMR can sound perfect and then suddenly become difficult or impossible to understand when the received signal falls below the decoding threshold. Analog FM usually becomes progressively noisier as the signal deteriorates.

Having both modes available is therefore a significant advantage.

True Dual-Band and Dual-Standby Operation

Another major advantage is the ability to monitor two frequencies.

For an amateur operator, this could mean monitoring a local repeater on one side while keeping a simplex frequency or another repeater on the second side.

It can also be useful during emergency communications.

For example, an operator might monitor:

A local emergency repeater

A simplex coordination frequency

Or:

VHF on one side

UHF on the other

This flexibility makes the AT-D890UV considerably more useful as a general-purpose communications tool.

Emergency Communications Potential

The AT-D890UV is particularly well suited to amateur-radio emergency communications because it combines so many different capabilities in one handheld.

A single radio can potentially provide:

VHF communications

UHF communications

Analog FM

DMR

GPS

APRS

Air-band monitoring

Cross-band repeating

Bluetooth operation

Digital messaging

Multiple power levels

Dual-frequency monitoring

That is a remarkable amount of functionality for a handheld transceiver.

The cross-band repeater function is especially interesting for emergency preparedness.

A group could potentially deploy an AT-D890UV at an elevated location to temporarily bridge two bands.

However, the limitations of a handheld must be remembered. A dedicated repeater with a high-quality antenna, duplexer, large battery system and substantial RF coverage will normally outperform a handheld repeater setup.

The AT-D890UV should therefore be viewed as a portable communications tool rather than a substitute for professional repeater infrastructure.

Strengths

The AT-D890UV has an unusually strong list of advantages.

Its biggest strengths include the combination of DMR and analog operation, dual-band coverage, high memory capacity, GPS, APRS, Bluetooth, air-band AM reception and cross-band repeater capability.

The four selectable power levels are also useful because they let the operator balance range and battery life.

The large digital-contact capacity makes the radio particularly attractive to operators who maintain extensive DMR codeplugs.

USB Type-C charging is another excellent modernization.

The radio is also interesting for satellite enthusiasts because of its reported full-duplex VHF/UHF capabilities.

Weaknesses

The biggest weakness is complexity.

This is not a radio that someone should buy expecting to turn it on, enter a frequency and immediately understand every feature.

The programming system can require considerable time to learn.

Another issue is that the large feature set can make the radio feel somewhat intimidating.

There are also differences between published specifications from different sellers and regional versions, particularly concerning frequency coverage and battery capacity. Prospective buyers should therefore verify the exact version they are purchasing rather than relying solely on a third-party product description.

The cross-band repeater is powerful, but it is also subject to configuration restrictions.

Finally, operators who only want a basic analog VHF/UHF handheld will probably be paying for many features they never use.

Who Should Buy the AT-D890UV?

The AT-D890UV makes the most sense for an experienced amateur radio operator who wants one handheld capable of doing many different jobs.

It is especially attractive for:

DMR operators

APRS users

Portable operators

Emergency-communications operators

Satellite enthusiasts

POTA operators

Field-day participants

Emergency-preparedness enthusiasts

Operators who travel frequently

Operators who want cross-band repeater capability

Operators who monitor aviation communications

Radio experimenters

It is less compelling for someone who simply wants an inexpensive handheld for talking through a local analog repeater.

There are much simpler radios available for that purpose.

Comparison With a Basic Dual-Band Handheld

A conventional inexpensive dual-band handheld generally gives you VHF, UHF, analog FM and perhaps a few additional functions.

The AT-D890UV goes considerably further.

Instead of just being a handheld transceiver, it becomes something closer to a portable communications platform.

You get DMR, GPS, APRS, Bluetooth, air-band reception, cross-band repeating, digital messaging, extensive memory and advanced programming.

The price reflects that additional capability.

The question is therefore not simply whether the AT-D890UV is more capable than a basic handheld.

It clearly is.

The more important question is whether you will actually use those capabilities.

For an operator who will use them, the additional functionality can justify the higher cost.

Overall Value

The AT-D890UV occupies an interesting position in the amateur-radio market.

It is not the simplest handheld.

It is not necessarily the best choice for a beginner.

It is not intended to replace a dedicated base station or repeater.

But as a feature-rich portable radio, it is extremely impressive.

The combination of VHF, UHF, DMR, analog FM, GPS, APRS, Bluetooth, air-band AM, cross-band repeating and USB-C charging gives the radio an unusually broad range of applications.

The current AnyTone USA listing gives the AT-D890UV an MSRP of $299.99, placing it in the premium handheld category rather than the budget-radio category.

At that price, buyers should expect a sophisticated radio and should be prepared to spend some time learning its programming system.

Final Verdict

The Anytone AT-D890UV is an exceptionally versatile handheld radio.

Its greatest strength is not any single feature. It is the sheer number of useful capabilities that have been combined into one portable transceiver.

DMR users get a powerful dual-band platform.

Analog operators still have full FM functionality.

Portable operators get GPS and APRS.

Satellite operators get potentially valuable full-duplex capability.

Emergency-communications operators get dual-band operation and cross-band repeating.

Aviation enthusiasts get AM air-band reception.

Modern users get Bluetooth and USB Type-C charging.

And operators who maintain enormous DMR contact databases get an impressive 500,000-contact capacity.

The biggest drawback is complexity. The AT-D890UV is a radio that rewards the operator who takes the time to learn it.

For someone who wants a simple VHF/UHF walkie-talkie, this radio may be overkill.

For the amateur radio operator who wants one handheld that can serve as a DMR radio, analog transceiver, APRS tracker, aviation receiver, satellite radio and emergency communications tool, however, the AT-D890UV is one of the most interesting choices available.

Overall, I would rate the Anytone AT-D890UV 9 out of 10.

Its combination of features, flexibility and RF capabilities makes it an excellent choice for advanced amateur-radio operators who are willing to learn the system and take advantage of what it can actually do.

Get The Anytone AT-D890UV On Amazon!

Amateur radio has always been about finding ways to communicate when conventional communications systems are unavailable, overloaded, damaged, or simply out of reach. For decades, voice communication has been the most familiar way for radio amateurs to communicate, whether through local VHF and UHF repeaters, HF single sideband, or other voice modes.

But…

Read more

Microcontrollers and small single-board computers have become some of the most useful tools available to modern amateur radio operators. Devices such as Arduino boards, Raspberry Pi computers, ESP32 development boards, Teensy controllers and similar platforms have made it possible for radio amateurs to build equipment that once required expensive specia…

Read more

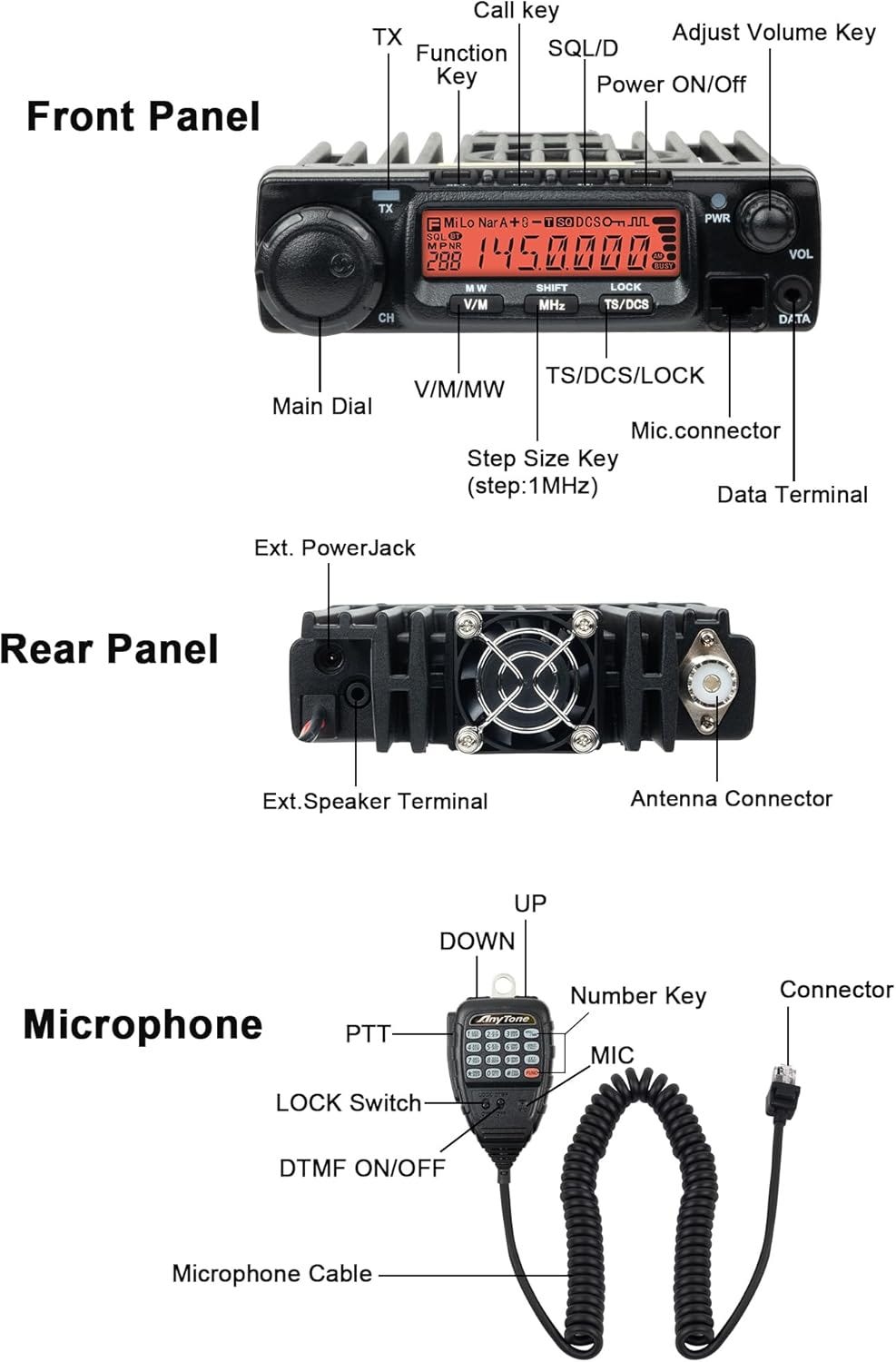

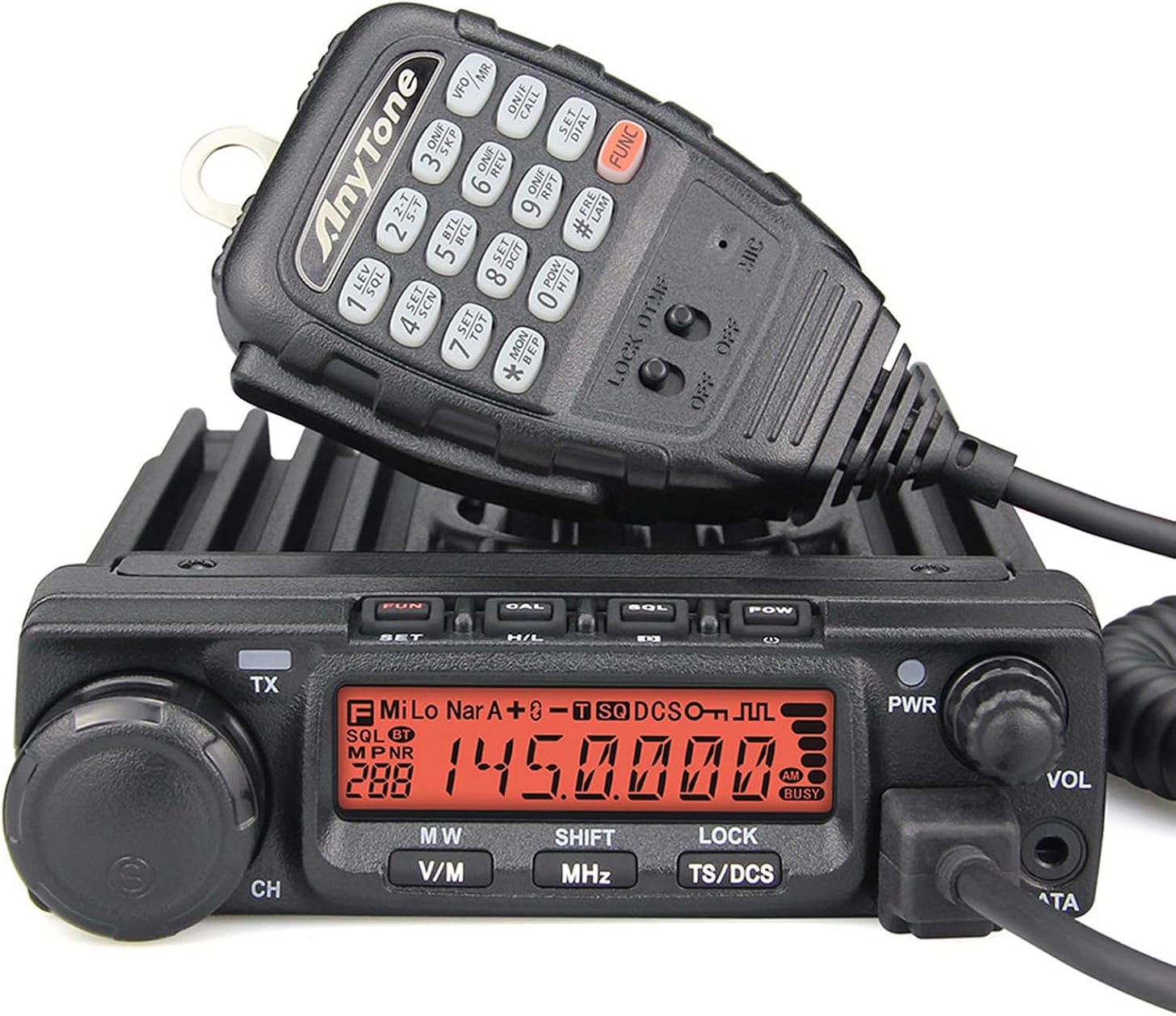

The AnyTone AT-779UV is an interesting amateur radio mobile transceiver for operators who want more power and capability than a typical handheld radio but do not necessarily need a large, expensive mobile rig. With a compact chassis, dual-band VHF/UHF operation, programmable memories, a keypad microphone, and approximately 20 watts of transmit power, the AT-779UV is designed around a simple idea: provide useful mobile communications capability in a very small package.

The particular package reviewed here includes the AT-779UV radio along with a UV-72 antenna and cable, making it an attractive option for someone looking for a relatively complete mobile-radio setup rather than purchasing every component separately.

The AT-779UV has been sold in several versions and configurations over the years, so specifications can vary somewhat between markets and revisions. Published documentation lists versions covering VHF and UHF ranges such as 136-174 MHz and 400-480/490 MHz, while some U.S. amateur-radio versions have more restricted transmit ranges. Buyers should therefore verify the exact version being offered before purchasing.

First Impressions

The biggest attraction of the AT-779UV is its size.

This is a remarkably compact mobile radio. Published dimensions are approximately 124 x 101 x 36 mm, with a listed main-unit weight around 0.45 kg. That makes it considerably smaller than many traditional dual-band mobile transceivers.

The small size opens up several installation possibilities.

It can be mounted in a vehicle without consuming a large amount of dashboard or console space. It can also work well in a compact communications box, emergency communications kit, RV, camper, workshop, or small home station.

For operators who like keeping their equipment portable, the AT-779UV is particularly interesting because it provides substantially more transmitting power than a typical handheld without requiring the physical space of a conventional full-size mobile.

One independent review described it as a compact 20-watt dual-band analog mobile with the basic features needed for a small mobile installation. That assessment remains a good description of the radio’s overall philosophy.

Design and Build Quality

The AT-779UV has a straightforward design rather than trying to imitate a high-end modern transceiver.

The chassis is compact and designed to be mounted using the included bracket. The radio has a front-panel display and controls, while many of the functions can also be accessed from the supplied microphone.

The relatively small chassis is one of the strongest reasons to consider this radio.

Traditional mobile radios can be difficult to install in modern vehicles because of limited space behind dashboards and consoles. The AT-779UV provides another option. Its small footprint makes it easier to install where a larger transceiver might not fit.

The included mounting bracket also makes permanent installation easier.

As with any mobile transceiver, adequate ventilation is important. Twenty watts may not sound like a huge amount of RF power compared with a 50- or 100-watt HF radio, but the radio still generates heat during transmission. Extended high-power transmissions should not be made with the radio enclosed in a location where airflow is restricted.

VHF and UHF Operation

The primary attraction of the AT-779UV is its dual-band capability.

The radio is designed to operate on both VHF and UHF, making it useful for the two amateur bands most commonly associated with local FM communications.

Depending on the particular version, published specifications list frequency coverage around:

VHF: 136-174 MHz

UHF: 400-480/490 MHz

The exact transmit coverage can be narrower depending on the market and programming configuration.

For amateur-radio operators, the important point is that the radio can provide access to both the 2-meter and 70-centimeter portions of the amateur bands when using an appropriate amateur version.

That makes it useful for:

Local simplex communication

2-meter repeaters

70-centimeter repeaters

Emergency communications

Mobile commuting

Public-service communications where amateur radio is appropriate

Amateur-radio club activities

Field operations

Camping and recreational communications

Repeater monitoring

The radio is an analog FM transceiver rather than a modern digital-mode mobile. Operators looking for DMR, D-Star, or C4FM should look elsewhere.

That is not necessarily a disadvantage.

There are still enormous numbers of analog FM repeaters and simplex operators, and analog remains one of the easiest ways for a new amateur operator to get started with mobile VHF/UHF communications.

Transmit Power

Power is another major selling point.

The AT-779UV is commonly advertised as a 20-watt radio. Published specifications for various versions list VHF output around 20 watts or higher and UHF output around 18-20 watts, while some documentation describes selectable power levels.

Other published AnyTone documentation lists output settings such as 20W/10W/5W.

The practical significance of 20 watts is more important than the number itself.

A handheld radio might transmit at approximately 5 watts. Increasing the power to 20 watts represents a fourfold increase in transmitter power.

However, it is important to understand that four times the transmitter power does not mean four times the communication distance.

Range depends heavily on antenna height, antenna efficiency, terrain, obstacles, feed-line loss, receiver sensitivity, interference, and whether a repeater is being used.

A good mobile antenna installed correctly can make a much larger difference than simply increasing transmitter power.

This is where the included UV-72 antenna becomes important.

The UV-72 Antenna

A mobile radio is only as good as the antenna system connected to it.

The UV-72 included in this package is intended to provide a convenient VHF/UHF antenna solution for the AT-779UV.

For someone purchasing their first mobile setup, having an antenna and cable included is a significant convenience. Instead of buying a transceiver and then trying to determine which antenna, mount, and cable are compatible, the package provides the major components together.

However, buyers should pay close attention to the exact UV-72 configuration supplied with their particular package.

Antenna performance is highly dependent on installation.

A magnetic-mount antenna placed in the center of a vehicle roof will generally have a much better ground plane and radiation environment than the same antenna positioned on a metal trunk edge or inside a vehicle.

The cable routing also matters.

Avoid sharply bending coaxial cable, crushing it under doors, or creating unnecessary loops. Poor installation can increase losses and potentially create problems with the antenna system.

Most importantly, check the antenna’s SWR before operating the radio extensively at full power.

A properly matched antenna helps protect the transmitter and allows more of the available RF energy to be radiated.

The Included Cable

The cable included with the package adds considerable convenience.

Depending on the specific product bundle, the cable may refer to the antenna/feed-line assembly or a programming cable, so purchasers should carefully examine the seller’s description before ordering.

The AT-779UV itself has historically been offered with optional programming cables, and some packages include one while others do not.

This is important because programming the radio from a computer can make the difference between a quick, organized installation and a frustrating one.

Programming

Programming is one of the areas where the AT-779UV becomes much more interesting than its small size suggests.

The radio supports programmable memories, and published documentation for different versions lists either 200 or 500 memory channels.

Because specifications have changed between revisions and versions, buyers should verify the exact channel capacity of the unit they are purchasing.

Programming allows an operator to store frequencies and associated settings instead of manually entering everything every time the radio is used.

For a mobile operator, this is extremely useful.

You can create memory channels for local repeaters, simplex frequencies, travel routes, emergency communications frequencies, and other commonly monitored channels.

The keypad microphone also makes the radio much easier to operate from the driver’s position than a radio requiring constant access to tiny front-panel controls.

Programming software can take some time to learn, particularly for a first-time user.

The good news is that once the radio has been programmed, normal operation becomes considerably easier.

Keypad Microphone

The microphone is one of the more useful features of the AT-779UV.

Instead of making the radio completely dependent on front-panel controls, the microphone incorporates multiple buttons that allow the operator to access important functions.

This is particularly valuable in a vehicle.

The radio itself can be mounted somewhere out of the way while the microphone remains within easy reach.

The keypad also makes it easier to enter frequencies, select memories, and perform other operations without physically reaching toward the transceiver.

For mobile use, this is a practical design decision.

Display

The front display is compact but provides the information needed for normal operation.

The radio can display frequency and operating information, while the controls allow the operator to switch between VFO and memory operation and access additional functions.

It is not comparable to the large color displays found on expensive modern amateur transceivers.

But that is not really what the AT-779UV is trying to be.

The display is functional rather than luxurious.

For a small mobile radio, that is perfectly acceptable.

CTCSS and DCS

The AT-779UV supports the signaling systems commonly used with VHF/UHF FM repeaters.

CTCSS and DCS are particularly important.

CTCSS allows a sub-audible tone to be transmitted with your signal so that a repeater can recognize your transmission.

DCS performs a similar function using a digital coded squelch system.

These features make the AT-779UV compatible with a large number of analog repeaters.

Before programming a repeater, you will normally need to know its frequency, offset, tone or DCS setting, and any other required parameters.

Once those settings are programmed into memory, operating the repeater can become as simple as selecting the memory channel and pressing PTT.

Scanning

Scanning is another useful feature for mobile operation.

Instead of monitoring one frequency continuously, the radio can scan programmed channels.

This can be useful when traveling because you can create a collection of repeater memories and allow the radio to monitor them.

You might have repeaters from several cities programmed into the radio before beginning a trip.

As you move through the area, you can manually select the appropriate repeater or allow the radio to scan the available channels.

Scanning is also useful for monitoring local simplex activity.

VOX

The radio supports VOX functionality.

VOX allows the transmitter to activate when the microphone detects your voice rather than requiring the PTT button to be pressed.

This can be useful in certain applications, although most amateur operators will probably prefer conventional PTT operation.

VOX can sometimes activate unintentionally because of background noise, especially inside a vehicle.

For normal mobile amateur-radio use, I would consider VOX a useful extra rather than a primary reason to buy the radio.

DTMF and Additional Signaling

The AT-779UV platform also supports DTMF and additional signaling functions, depending on the specific firmware and version.

DTMF is particularly useful when interacting with certain repeater systems and remote-control functions.

Additional signaling features such as 2-tone and 5-tone are more commonly associated with commercial and professional radio systems.

Their presence gives the AT-779UV some flexibility beyond basic amateur FM operation.

Audio Performance

A mobile radio needs reasonably good audio, and this is an area where compact radios can sometimes surprise people.

The AT-779UV has an internal speaker and published specifications list audio output exceeding 2 watts under specified test conditions.

That is plenty for normal mobile operation.

In a quiet vehicle, the internal speaker should generally be adequate.

In a noisy truck or off-road vehicle, an external speaker could still be desirable.

The microphone is equally important because a powerful transmitter is not particularly useful if the transmitted audio is poor.

The AT-779UV’s supplied microphone provides the basic controls necessary for normal operation and gives the operator a practical way to control the radio without reaching toward the main unit.

Receiver Performance

Receiver specifications published for the AT-779UV list sensitivity figures around 0.25 microvolts for wideband operation and 0.35 microvolts for narrowband operation under specified measurement conditions.

Those numbers indicate a reasonably sensitive receiver.

However, published sensitivity figures should not be interpreted as a guarantee of real-world range.

Real-world reception depends on antenna quality, location, interference, terrain, propagation, and many other factors.

The receiver’s ability to handle strong nearby signals is also important.

This becomes especially noticeable in areas with many transmitters, near commercial radio sites, or during large public events where many radios are operating simultaneously.

For ordinary amateur mobile operation, the AT-779UV should provide useful performance.

Power Requirements

The AT-779UV operates from approximately 13.8 volts DC.

This makes it naturally suited to vehicle electrical systems and conventional amateur-radio power supplies.

One advantage of the radio’s relatively modest output power is that it does not require the same current capacity as a 50- or 100-watt mobile transmitter.

An independent review found that the radio drew approximately 4 amps on high power and suggested a power supply of at least 6 amps continuous for base-station use, with 10 amps providing ample capacity.

A properly fused power connection should always be used.

For a vehicle installation, connect the radio according to the manufacturer’s instructions and make sure the wiring is appropriately sized and protected.

Mobile Installation

The AT-779UV is particularly well suited to vehicles.

Its compact dimensions make it easy to find a mounting location.

Possible installation locations include:

Under-dash mounting areas

Center consoles

Truck interiors

RV dashboards

Emergency communication vehicles

Off-road vehicles

Workshop communication stations

Portable communications cases

The included mounting bracket makes permanent installation relatively straightforward.

The antenna installation deserves at least as much attention as the radio installation.

A mediocre antenna mounted in a poor location can make an excellent transceiver perform badly.

Conversely, a properly installed antenna can make a relatively inexpensive radio perform extremely well.

Base-Station Use

Although the AT-779UV is primarily a mobile radio, it can also be used as a small base station.

All that is required is an appropriate 13.8-volt DC power supply, antenna system, coaxial feed line, and suitable VHF/UHF antenna.

For a home station, a rooftop or mast-mounted antenna will generally outperform a small mobile antenna.

This is because antenna height can provide a tremendous advantage on VHF and UHF.

A 20-watt radio connected to a good outdoor antenna can be an extremely effective local communications station.

It can also be useful as a backup radio for an amateur-radio shack containing a larger HF transceiver.

Emergency Communications

The AT-779UV can make sense as part of an emergency communications setup.

Its compact size, modest power requirements, dual-band operation, and ability to operate from a vehicle electrical system are all useful characteristics.

An emergency communications kit could include the radio, spare fuses, suitable antenna equipment, a programming cable, printed frequency information, and a backup 12-volt power source.

The important thing to remember is that amateur radio is not a magic long-distance communication system.

VHF and UHF are primarily line-of-sight communications bands.

A repeater can dramatically extend coverage, but if repeaters are unavailable, antenna height and terrain become extremely important.

For emergency preparedness, this radio is therefore best considered one component of a larger communications plan.

SHTF and Preparedness Applications

For preparedness-minded amateur operators, the AT-779UV has several attractive characteristics.

It is small enough to keep in a vehicle.

It does not require the large power supply associated with a high-power HF station.

It can communicate through local repeaters.

It can communicate simplex when repeaters are unavailable.

It can operate from a 12-volt electrical system.

It can be programmed with a large number of channels depending on the particular version.

It can be paired with better antennas as circumstances require.

That combination makes it useful as a short-range and regional communications tool.

However, operators preparing for major emergencies should avoid relying exclusively on one radio.

A comprehensive communications setup might combine VHF/UHF FM, HF, receive-only broadcast capability, multiple antennas, backup power, and printed information.

Heat Management

One issue that deserves attention is heat.

The AT-779UV’s compact enclosure does not provide unlimited thermal capacity.

Running 20 watts occasionally is very different from transmitting continuously for long periods.

During extended transmissions, the chassis can become warm.

Operators should install the radio where air can circulate around it.

Do not bury it under insulation, clothing, equipment, or other materials.

For normal amateur conversations, transmissions are usually intermittent, so this should not be a major problem.

What I Like About the AT-779UV

The first major advantage is its size.

This radio is small enough to fit into installations where a conventional mobile would be inconvenient.

The second advantage is its power.

Twenty watts provides a meaningful improvement over a handheld radio while still keeping the radio relatively compact.

The third advantage is dual-band operation.

Being able to access both VHF and UHF makes the radio substantially more useful than a single-band mobile.

The keypad microphone is another strong point.

It puts many controls directly in the operator’s hand.

The programmable memory system is also useful, especially for operators who regularly travel.

Finally, the relatively simple design means the radio is not overloaded with complicated features that many operators may never use.

What I Don’t Like

There are also limitations.

The AT-779UV is an analog-only radio.

Operators who want DMR, D-Star, C4FM, or other modern digital modes will need a different transceiver.

The display is also fairly basic compared with newer radios.

Programming can take some time to learn, especially for someone unfamiliar with amateur-radio programming software.

Another concern is the variation among different versions and bundles.

AT-779UV specifications have changed over the years, and different sellers may offer different configurations.

Buyers should verify the exact transmit frequency range, channel capacity, power levels, included accessories, and programming-cable situation before ordering.

The included antenna should also be viewed as a starting point rather than necessarily the ultimate antenna solution.

AT-779UV Versus a Handheld

For someone deciding between this radio and a 5-watt handheld, the AT-779UV has several advantages.

The most obvious is output power.

A 20-watt mobile can provide substantially more RF power than a typical 5-watt handheld.

The second advantage is the vehicle antenna.

A properly installed external antenna can outperform the short antenna on a handheld by a significant margin.

The third advantage is ergonomics.

A mobile radio is much easier to use as a dedicated vehicle communication system.

The handheld wins in portability.

You can take a handheld almost anywhere, use its internal battery, and communicate without a vehicle.

For serious vehicle operation, however, the AT-779UV is arguably the better tool.

AT-779UV Versus a 50-Watt Mobile

The comparison with a larger 50-watt mobile is more complicated.

A 50-watt transceiver has a power advantage, but the difference between 20 and 50 watts is smaller than many newcomers expect.

20 watts is already enough for many local VHF/UHF communications applications.

If your antenna is poor, jumping from 20 to 50 watts may not solve the problem.

Improving antenna height, placement, feed line, and efficiency can be more beneficial.

The larger 50-watt radio will generally make more sense for operators who frequently need maximum available mobile power.

The AT-779UV makes more sense for someone who values compactness and simplicity.

Who Should Buy the AT-779UV?

I think this radio is best suited to several types of operators.

The first is the amateur operator looking for an inexpensive compact mobile.

The second is the operator who wants a dedicated vehicle radio without sacrificing a large amount of space.

The third is the preparedness enthusiast who wants a dual-band mobile for local communications.

The fourth is the operator who wants something more powerful than a handheld but does not need a 50- or 100-watt transceiver.

It is also a good choice for someone building a secondary communications station.

Who Should Look Elsewhere?

There are also operators who should consider something else.

If you want digital voice modes, this is not the radio for you.

If you want sophisticated color displays, GPS integration, APRS, Bluetooth, or advanced digital networking, a more modern transceiver would be a better choice.

If your primary goal is HF DX, this is also the wrong radio.

The AT-779UV is fundamentally a VHF/UHF FM communications radio.

That is its strength and its limitation.

Final Verdict

The AnyTone AT-779UV remains an appealing little VHF/UHF mobile radio because it concentrates the things that many amateur operators actually need into a remarkably compact package.

You get dual-band operation, approximately 20 watts of power, programmable memories, CTCSS and DCS support, scanning, a keypad microphone, and a small chassis that is easy to install.

The package that includes the UV-72 antenna and cable is particularly attractive for someone who wants to get a mobile station operational without having to purchase every component separately.

Its biggest strengths are its compact size, useful output power, straightforward operation, and versatility.

Its biggest weaknesses are its analog-only design, basic display, programming learning curve, and the fact that specifications can vary between different AT-779UV versions and sellers.

Overall, I would rate the AnyTone AT-779UV as a very capable budget-oriented VHF/UHF mobile radio for operators who want practical communications rather than a collection of high-end features.

It is not a flagship transceiver.

It does not try to be one.

Instead, it is a small, relatively simple, useful radio that can provide substantially more capability than a handheld while taking up very little space.

For a vehicle, emergency communications kit, RV, workshop, or compact home station, the AT-779UV deserves serious consideration.

The most important recommendation before buying is to verify the exact version being sold, particularly its transmit frequency range, power levels, channel capacity, included programming cable, antenna connector, and the specifications of the included UV-72 antenna. Those details can differ between packages and revisions.

With a properly installed antenna and correctly programmed channels, the AT-779UV can make an excellent everyday VHF/UHF mobile companion.

Get The AnyTone AT-779UV Bundle On Amazon!

For much of the 20th century, shortwave radio was one of the most powerful tools ever created for sending information across international borders.

A relatively small number of powerful transmitters could send news, commentary, cultural programming and political information thousands of miles. Unlike newspapers, television stations, telephone networks an…

Read more

Amateur radio is often associated with modern digital communications, single sideband voice, sophisticated transceivers, repeaters, satellites, and computer-assisted operating. Yet tucked inside the world of HF amateur radio is a mode that has been around for generations and still has a dedicated following: amplitude modulation, or AM.

For some ham radio…

Read more

Introduction

The AnyTone AT-5100 is a compact all-mode mobile transceiver designed specifically for the 10-meter amateur radio band. Supporting SSB, CW, AM, and FM operation across the entire 28.000 to 29.700 MHz amateur allocation, it offers operators the flexibility to enjoy everything from local FM repeater conversations to long-distance DX contacts during favorable band conditions. Although newer radios have entered the market with additional digital features, the AT-5100 continues to be respected for its solid performance, dependable construction, and straightforward operation.

Whether you are a newly licensed General Class operator looking for your first HF-capable radio or an experienced amateur wanting a dedicated 10-meter mobile rig, the AT-5100 provides an excellent balance between features, performance, and ease of use.

Design and Build Quality

The first thing most operators notice is the radio’s solid construction. The AT-5100 features a durable metal chassis designed to withstand years of mobile use. The controls have a positive feel, and the large tuning knob makes frequency adjustments quick and accurate.

The front panel is thoughtfully arranged with clearly labeled buttons, making it easy to navigate through the radio’s functions without constantly referring to the manual. The compact size allows the radio to fit comfortably in most vehicles while still providing a display large enough to read at a glance.

The included mounting bracket is sturdy, making installation secure whether the radio is mounted in a car, truck, SUV, RV, or used as a compact base station.

Frequency Coverage

The AT-5100 covers the complete 10-meter amateur radio band from 28.000 MHz through 29.700 MHz.

This allows operation on:

• CW segments

• SSB voice frequencies

• AM frequencies

• FM simplex channels

• FM repeaters

• Calling frequencies

• Beacon frequencies

• Digital mode frequencies

For operators who enjoy exploring everything the 10-meter band has to offer, the radio provides full access without unnecessary complexity.

Multiple Operating Modes

One of the biggest strengths of the AnyTone AT-5100 is its support for four popular operating modes.

Single Sideband (SSB)

SSB is where the radio truly shines. The AT-5100 delivers clean transmit audio while maintaining excellent receive sensitivity. During periods of strong solar activity, operators can enjoy impressive long-distance communication using modest antennas and reasonable power levels.

SSB remains the preferred voice mode for serious DX operators because it is efficient and allows signals to travel great distances when propagation cooperates.

Continuous Wave (CW)

Morse code operators will appreciate the stable frequency control and smooth tuning. The receiver handles weak CW signals well, allowing operators to enjoy long-distance contacts even when voice communication becomes difficult.

Amplitude Modulation (AM)

Although AM occupies only a small portion of the 10-meter band today, it remains popular among enthusiasts who enjoy classic operating styles. The AT-5100 provides pleasant transmit and receive audio while maintaining stable operation.

Frequency Modulation (FM)

FM operation is excellent for local communications, simplex operation, repeater use, emergency communications, and mobile contacts. When 10-meter repeaters become active during favorable propagation, the radio performs exceptionally well.

Receiver Performance

Receiver performance is one of the radio’s strongest features.

Weak stations remain easy to copy while background noise is kept to a minimum. The receiver provides excellent sensitivity without becoming overwhelmed by strong nearby signals.

Selectivity is very good, helping separate stations operating close together during busy band openings. This becomes especially useful during contests and periods of heavy activity.

The receive audio is clear, natural, and pleasant to listen to during extended operating sessions.

Transmitter Performance

The transmitter delivers clean, consistent audio across all supported modes.

Operators frequently receive positive audio reports, particularly while operating on SSB. Speech remains natural without sounding overly processed or distorted.

The radio provides sufficient output power for mobile operation and performs well when paired with a properly tuned antenna system.

Display

The front-panel display is bright and easy to read in both daylight and nighttime conditions.

Information displayed includes:

• Operating frequency

• Mode selection

• Signal strength

• Power level

• Memory channel information

• Menu settings

The display layout is uncluttered, allowing operators to quickly locate important operating information.

Controls and User Interface

The controls are arranged logically and are easy to learn.

Frequently used functions are readily accessible, allowing operators to make adjustments quickly without navigating complicated menus.

The tuning knob operates smoothly and provides accurate frequency changes, making it enjoyable to tune across the band while searching for activity.

Memory Channels

The radio includes programmable memory channels that allow operators to save frequently used frequencies.

These memories are useful for storing:

• Favorite repeaters

• Calling frequencies

• Local simplex channels

• Beacon frequencies

• Contest frequencies

Memory recall is quick and convenient, making everyday operation much easier.

Mobile Operation

The compact size makes the AT-5100 an excellent mobile radio.

It fits comfortably in most vehicles while remaining easy to access from the driver’s seat. The microphone is comfortable to hold and includes controls that reduce the need to reach for the front panel during operation.

For operators who travel frequently, the radio provides dependable performance while occupying very little dashboard space.

Heat Dissipation

The radio features an effective heat sink that keeps operating temperatures under control during normal use.

Even during extended conversations at higher power levels, the chassis manages heat efficiently, helping maintain reliable long-term performance.

Audio Quality

Audio quality is excellent on both transmit and receive.

Receive audio is crisp without sounding harsh or fatiguing during long operating sessions.

Transmit audio is natural and articulate, making conversations enjoyable while helping ensure excellent intelligibility.

The included microphone performs well, although operators who enjoy experimenting with audio may choose aftermarket microphones for personal preference.

Reliability

One reason the AT-5100 continues to have a loyal following is its reputation for reliability.

Many operators have used these radios for years with very few problems. The combination of solid construction and dependable electronics makes it a radio that inspires confidence both at home and on the road.

Routine maintenance is minimal beyond keeping the radio clean and ensuring adequate ventilation.

Operating During Band Openings

The 10-meter band can seem quiet for long periods, but when solar conditions improve, it often becomes one of the most exciting amateur bands available.

During major openings, operators can communicate across continents using relatively simple antennas and modest power levels.

The AT-5100 is well suited for taking advantage of these opportunities thanks to its stable receiver, clean transmitter, and support for every major operating mode used on the band.

Who Should Consider the AT-5100?

This radio is an excellent choice for:

• Newly licensed General Class operators

• Mobile amateur radio enthusiasts

• Operators who enjoy DX chasing

• Emergency communications volunteers

• Dedicated 10-meter enthusiasts

• Amateur radio operators looking for a compact all-mode transceiver

It also makes an excellent secondary radio for experienced operators who already own larger HF stations but want a dedicated mobile rig.

Pros

• Complete 10-meter amateur band coverage

• Supports SSB, CW, AM, and FM

• Compact design ideal for mobile installations

• Very good receiver sensitivity

• Clean transmit audio

• Easy-to-use controls

• Bright display

• Durable construction

• Reliable long-term performance

• Good overall value

Cons

• Limited to the 10-meter amateur band

• Does not include modern DSP noise reduction found on newer radios

• Smaller display than many current transceivers

• Limited computer connectivity compared to newer HF radios



Final Verdict

The AnyTone AT-5100 remains a highly capable all-mode 10-meter amateur radio that continues to satisfy operators who enjoy the unique characteristics of the 10-meter band. Its combination of dependable performance, clean audio, straightforward controls, and rugged construction has helped it remain popular long after its initial release.

While it may not include every modern feature found in today’s premium HF transceivers, it excels at its primary purpose: providing reliable communication on one of amateur radio’s most exciting bands. Whether installed in a vehicle or used as a compact base station, the AT-5100 delivers an enjoyable operating experience that appeals to both newcomers and experienced operators alike.

For amateur radio enthusiasts seeking a dedicated 10-meter all-mode mobile transceiver, the AnyTone AT-5100 remains an excellent choice that offers solid performance, dependable reliability, and years of enjoyable operation.

See The AnyTone AT-5100 On Amazon!

For many amateur radio operators, making contacts is only one part of the HF experience. There are times when band conditions are poor, contests dominate the frequencies, or perhaps you simply want to sit back and listen instead of transmitting. One of the most fascinating corners of the HF spectrum is the world of pirate radio.

Listening for pirate stat…

Read more

One of the biggest misconceptions in amateur radio is that you need an expensive antenna to enjoy HF communications. In reality, many experienced operators will tell you that the antenna is far more important than the radio itself, and some of the best-performing HF antennas can be built or purchased for well under $100. A simple wire antenna installed …

Read more

The Wanneton UV5F is an affordable dual-band handheld amateur radio designed for entry-level operators, emergency preparedness enthusiasts, hikers, campers, and anyone looking for a capable VHF/UHF handheld transceiver without spending a fortune. While it shares many characteristics with other budget handheld radios, the UV5F includes several useful upgrades that help distinguish it from the crowded marketplace.

Features such as One-Key Frequency Copy, USB-C charging, a large rechargeable battery, dual-band operation, an integrated FM broadcast receiver, and a powerful flashlight make this radio attractive for both new and experienced amateur radio operators.

For users wanting a low-cost handheld that covers the popular 2-meter and 70-centimeter amateur bands while offering modern conveniences, the UV5F deserves serious consideration.

Specifications

Model: Wanneton UV5F

Frequency Coverage

Receive

• 136–174 MHz

• 400–480 MHz

• 65–108 MHz FM Broadcast

Transmit

• 144–148 MHz

• 420–450 MHz

Power Output

• Up to 5 Watts

Channels

• 128 Memory Channels

Battery

• 1800mAh Rechargeable Lithium-Ion

Charging

• USB-C

• Desktop Charging Cradle

Display

• LCD Dual Display

Additional Features

• One-Key Frequency Copy

• Dual Watch

• Dual Display

• VOX

• CTCSS/DCS

• DTMF

• Emergency Alarm

• FM Broadcast Radio

• Bright LED Flashlight

• Computer Programmable

• Voice Prompts

The UV5F is intended primarily for amateur radio use and provides the features most operators expect from a modern entry-level handheld transceiver.

Design and Build Quality

The first impression of the UV5F is positive. The radio has a familiar handheld design with a comfortable grip and a solid feel in the hand. Although constructed primarily from durable plastic, it does not feel flimsy or cheaply made.

The controls are laid out in a logical manner.

The top of the radio includes:

• Antenna connector

• Power and volume knob

• Channel selector

• Status LED

The front features a bright LCD display along with a full keypad for entering frequencies and navigating menus.

The side houses:

• Push-to-Talk button

• Programmable function button

• Flashlight button

The buttons provide good tactile feedback and should withstand years of normal use. The included belt clip is sturdy enough for everyday carrying.

Overall, build quality is impressive considering the radio’s affordable price.

Display

The dual-frequency LCD display is bright and easy to read indoors and outdoors.

Information displayed includes:

• Frequency

• Channel number

• Battery level

• Signal indicators

• Menu settings

The adjustable backlight is bright enough for nighttime operation while remaining easy on the eyes.

Although it is not a color display like those found on premium handheld radios, it provides all of the information most operators need.

Ease of Use

Many beginners find handheld amateur radios intimidating because of their menu systems, but the UV5F makes operation relatively straightforward.

Helpful features include:

• Voice prompts

• Easy-to-understand menus

• Full keypad

• Dual VFO operation

Programming frequencies manually is simple enough for most users.

Operators who prefer using programming software can also load repeater lists and channel memories from a computer using a compatible programming cable, making setup much faster.

One-Key Frequency Copy

One of the UV5F’s standout features is its One-Key Frequency Copy function.

Instead of manually entering another radio’s operating frequency, the UV5F can detect and copy compatible analog frequencies from nearby radios.

This feature is especially useful during group activities, emergency preparedness training, family outings, and public service events where multiple radios need to be programmed quickly.

It is important to understand that this feature copies compatible analog frequencies only and does not decode encrypted or proprietary digital communications.

Transmit Performance

The radio delivers approximately 5 watts of RF output, which is standard for handheld amateur radios in this price category.

Performance is excellent for:

• Local simplex communication

• Repeater operation

• Emergency communication

• Camping

• Hiking

• Neighborhood communication

Audio reports are generally clear with good microphone sensitivity and natural voice quality.

Communication range depends largely on terrain, antenna quality, surrounding buildings, and repeater availability.

Typical expectations include:

Urban Areas
1 to 5 miles simplex

Suburban Areas
3 to 10 miles

Open Rural Terrain
10 miles or more

Repeaters
20 to well over 100 miles depending on antenna height and repeater coverage.

Receive Performance

Reception is surprisingly good for an affordable handheld radio.

The receiver covers:

• Amateur VHF

• Amateur UHF

• FM Broadcast Radio

Receiver sensitivity is more than adequate for everyday amateur radio operation.

Like many inexpensive handheld radios, users operating in areas with very strong nearby transmitters may occasionally notice receiver overload, but this is unlikely to affect the average operator.

Audio Quality

Speaker volume is excellent.

Received audio remains loud and easy to hear even outdoors.

The speaker provides:

• Clear voice reproduction

• Low distortion

• Plenty of volume

Transmit audio is equally impressive, producing clear and understandable voice communications.

Battery Life

The included 1800mAh lithium-ion battery provides dependable operating time.

Typical battery life includes:

Light Monitoring
Several days

Moderate Daily Use
One to two days

Heavy Transmitting
Most of a full operating day

USB-C charging is one of the radio’s biggest advantages.

Instead of relying solely on the desktop charger, users can recharge the radio from:

• USB wall chargers

• Vehicle USB adapters

• Portable power banks

• Laptop USB ports

The included desktop charging cradle remains a convenient option for charging at home.

Flashlight

The integrated LED flashlight is noticeably brighter than those found on many competing handheld radios.

Although it is not intended to replace a dedicated flashlight, it performs well during:

• Camping trips

• Walking at night

• Vehicle emergencies

• Power outages

• Locating equipment in dark environments

Its convenience makes it a genuinely useful emergency feature.

FM Broadcast Receiver

The built-in FM broadcast receiver adds additional versatility.

Users can listen to local FM radio stations during downtime without carrying a separate radio.

Reception quality is generally very good using the included antenna.

Programming

The UV5F supports both manual programming and computer programming.

Manual programming is sufficient for entering a few local repeaters, while computer programming is recommended for operators who want to organize larger channel lists or maintain backups of their radio’s configuration.

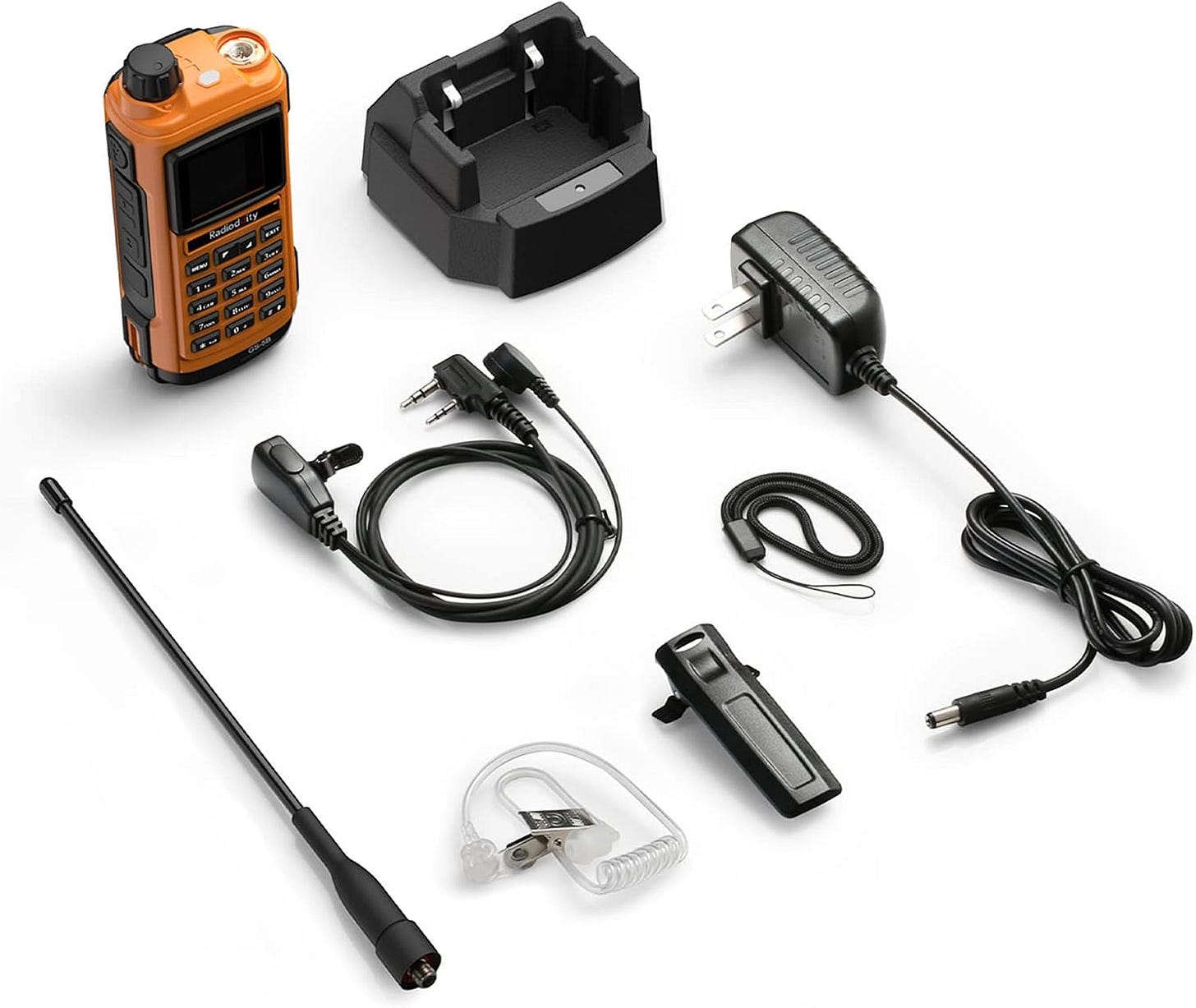

Included Accessories

The package typically includes:

• Wanneton UV5F Handheld Radio

• Rechargeable Battery

• Flexible Antenna

• Desktop Charging Cradle

• USB Charging Cable

• Belt Clip

• Earpiece

• User Manual

Everything needed to begin operating is included in the box.

Who Should Buy the UV5F?

The UV5F is an excellent choice for:

• New amateur radio operators

• Emergency preparedness enthusiasts

• CERT volunteers

• Campers

• Hikers

• Off-road enthusiasts

• Event volunteers

• Families needing affordable handheld communications

• Amateur radio operators looking for a dependable backup radio

It also makes an excellent secondary handheld for experienced operators who want an inexpensive radio for travel or field use.

Pros

• Excellent value for the price

• Clear transmit audio

• Loud speaker

• USB-C charging

• Desktop charging cradle included

• Good battery life

• Dual-band operation

• FM broadcast receiver

• Bright LED flashlight

• One-Key Frequency Copy feature

• 128 memory channels

• Computer programmable

• Easy to carry

Cons

• Receiver performance does not match premium amateur radios in high-RF environments.

• The factory antenna performs adequately but can be upgraded for improved range.

• Menu navigation may require some practice for first-time users.

• It offers limited weather resistance and is not designed for heavy rain or submersion.

Final Verdict

The Wanneton UV5F delivers an impressive combination of features, performance, and affordability. It provides dependable dual-band amateur radio operation while adding useful conveniences such as USB-C charging, a bright flashlight, FM broadcast reception, and One-Key Frequency Copy.

While it cannot compete with premium handheld radios in terms of ruggedness, receiver filtering, or advanced features, it performs remarkably well for its price. Beginners will appreciate its ease of use and modern conveniences, while experienced operators will find it to be a capable backup or loaner radio.

For anyone seeking a feature-rich, budget-friendly dual-band handheld, the Wanneton UV5F is an excellent choice. It offers solid performance, useful everyday features, and dependable operation at a price that makes it accessible to nearly every amateur radio enthusiast.

See The Wanneton UV5F On Amazon!

The internet has become one of the most important communication systems ever created. From email and websites to video streaming and cloud computing, nearly every aspect of modern life depends on internet connectivity. Amateur radio, on the other hand, has served as a reliable means of communication for more than a century, operating independently of co…

Read more

Introduction

Among all of the achievements in amateur radio, few are as technically challenging and rewarding as Earth-Moon-Earth communication, more commonly known as Moon Bounce or simply EME. Unlike conventional contacts that rely on repeaters, the ionosphere, satellites, or direct line-of-sight propagation, EME uses the Moon itself as a passive refle…

Read more

The BTECH DA-7X2 is one of the most feature-rich handheld amateur radios released in recent years. Designed for both analog FM and DMR digital communications, it combines advanced technology with a familiar handheld form factor while adding capabilities that were previously found only in much more expensive commercial radios. The DA-7X2 is aimed at amateur radio operators who want one handheld that can perform nearly every communications task, from local repeaters to APRS, satellite tracking, cross-band repeating, and digital networking.

Unlike many handhelds that simply add DMR capability to a traditional analog radio, the DA-7X2 was designed as a complete digital and analog communications platform. It includes hardware and firmware intended to support future enhancements, making it a radio that should continue to improve through firmware updates.

First Impressions

The first thing most operators notice is that the DA-7X2 feels like a premium handheld. It has a solid construction with excellent fit and finish, large color display, comfortable controls, and a substantial weight that inspires confidence without being overly heavy.

The radio typically includes:

• DA-7X2 handheld radio

• 3100mAh lithium-ion battery

• Desktop charging cradle

• USB charging accessories

• Bluetooth wireless PTT accessory

• Programming cable

• Two antennas

• Belt clip

• Wrist strap

• User manual

Including two antennas in the package is a welcome addition, allowing operators to experiment with different performance characteristics without purchasing accessories immediately.

Build Quality

The housing feels rugged and durable. Buttons have a positive tactile response, the knobs rotate smoothly, and the display remains readable in bright sunlight as well as low-light conditions.

The radio features weather-resistant construction suitable for most outdoor amateur radio activities including Parks on the Air, emergency communications, camping, hiking, field day events, and general portable operation. While it is not intended for submersion, it is capable of handling light rain and dusty environments.

Analog Performance

One area where many DMR radios struggle is analog FM performance. Fortunately, the DA-7X2 performs extremely well on traditional FM repeaters.

Receive sensitivity is excellent on both the 2-meter and 70-centimeter amateur bands. Weak repeaters remain understandable while strong local stations produce clean, crisp audio.

Transmit audio is natural and clear. Several microphone gain settings allow operators to tailor transmitted audio to their speaking style and operating conditions.

DMR Performance

The digital capabilities are where the DA-7X2 truly shines.

The radio supports numerous advanced DMR functions including:

• DMR Tier II

• Dual time slot operation

• Talk groups

• Digital contacts

• Digital roaming

• Talker Alias

• Digital monitor

• Individual calling

• Large contact database

The radio can store an enormous digital contact database, making it easy to identify stations while operating on DMR networks. This large memory capacity also allows operators to build extensive codeplugs for travel across multiple states or regions.

Programming digital channels is naturally more involved than programming traditional analog radios, but the available programming software provides extensive flexibility and customization.

True Dual Receive

Unlike handhelds that simply alternate between two frequencies, the DA-7X2 incorporates true dual receivers.

This allows operators to monitor:

• Two analog channels simultaneously

• Two DMR channels simultaneously

• One analog and one DMR channel at the same time

• VHF and UHF simultaneously

This capability is especially useful during emergency communications, public service events, or while monitoring multiple repeaters.

Cross-Band Repeater

One of the standout features of the DA-7X2 is its cross-band repeat capability.

Supported configurations include:

• Analog to Analog

• Digital to Digital

• Analog to Digital

• Digital to Analog

This feature allows the handheld to function as a compact cross-band repeater, extending communications range during portable or emergency operations.

APRS Features

The DA-7X2 offers one of the most complete APRS implementations available in a handheld radio.

Features include:

• Analog APRS

• Digital APRS

• APRS reception

• GPS beaconing

• APRS messaging

• Position display

• Distance and direction calculations

• APRS packet logging

These capabilities make the radio particularly useful for emergency communications volunteers, search and rescue teams, and operators participating in public service events.

GPS and Satellite Functions

An integrated GPS receiver provides accurate location information for APRS and navigation-related features.

Additional capabilities include:

• Position tracking

• GPS roaming

• Automatic zone changes

• Amateur satellite tracking

• Satellite prediction

Satellite tracking is particularly attractive for amateur satellite enthusiasts who regularly work low Earth orbit amateur satellites.

Bluetooth Features

Bluetooth functionality extends beyond simple wireless audio.

Capabilities include:

• Wireless PTT operation

• Bluetooth accessory support

• Convenient hands-free operation

These features are especially useful during hiking, portable operations, and emergency deployments.

Airband Reception

The inclusion of AM aircraft band reception significantly expands the usefulness of the radio.

Operators can monitor:

• Air traffic control communications

• Local airport operations

• Aviation weather broadcasts

This effectively gives the user both an amateur radio and an aviation receiver in one handheld device.

NOAA Weather

Built-in NOAA weather reception allows operators to monitor local weather broadcasts and emergency weather alerts.

For emergency preparedness and outdoor activities, this eliminates the need to carry a separate weather receiver.

Audio Quality

Audio performance is one of the strongest characteristics of the DA-7X2.

The powerful front-facing speaker delivers loud, rich audio that remains easy to understand even in noisy environments.

Volume levels are adjustable to suit personal preference and operating conditions.

Battery Life

The included 3100mAh battery provides impressive operating time.

Depending on transmit power and usage, many operators can expect a full day—or even multiple days—of operation between charges.

USB charging makes the radio particularly convenient for field use, allowing charging from:

• Portable power banks

• Vehicle USB chargers

• Solar charging systems

• Portable generators

• USB wall adapters

This flexibility makes the radio an excellent choice for emergency preparedness and extended outdoor use.

Programming

Programming is accomplished through dedicated computer software.

The radio supports:

• Thousands of memory channels

• Numerous memory zones

• Massive digital contact storage

• Firmware updates

• Configuration backups

While the learning curve is steeper than that of a basic analog handheld, experienced operators will appreciate the extensive customization options.

Operating Experience

In everyday operation, the DA-7X2 feels polished and responsive.

The color display is bright and easy to read.

Menus are logically organized, making navigation straightforward after a brief period of familiarization.

Switching between analog FM and DMR operation is seamless, allowing operators to move effortlessly between local repeaters and worldwide digital networks.

Advantages

The DA-7X2 offers numerous strengths:

• Excellent analog FM performance

• Outstanding DMR functionality

• True dual receivers

• Cross-band repeat capability

• Analog and digital APRS

• Built-in GPS

• Bluetooth connectivity

• Amateur satellite tracking

• Large color display

• Extensive memory capacity

• Loud, high-quality speaker

• Long battery life

• Airband reception

• NOAA weather monitoring

• Expandable firmware platform

Disadvantages

Although highly capable, the radio is not without drawbacks.

• The large number of features creates a learning curve for new operators.

• DMR programming can initially seem complex.

• Some advanced functions may never be used by operators who primarily communicate on local analog repeaters.

• The extensive menu system takes time to master.

Who Should Buy the BTECH DA-7X2?

This radio is an excellent choice for:

• Amateur radio operators who use both analog FM and DMR.

• Emergency communications volunteers.

• ARES and RACES members.

• Parks on the Air operators.

• APRS enthusiasts.

• Amateur satellite operators.

• Traveling amateur radio operators.

• Radio enthusiasts seeking a single handheld capable of handling nearly every modern amateur radio application.

Final Verdict

The BTECH DA-7X2 is one of the most advanced dual-band handheld amateur radios currently available. Its combination of excellent analog performance, robust DMR capability, APRS support, integrated GPS, Bluetooth connectivity, cross-band repeat functionality, true dual receive architecture, satellite tracking, aviation band reception, and exceptional battery life make it an outstanding all-around communications tool.

While beginners may need some time to become familiar with its extensive capabilities, experienced amateur radio operators will appreciate its versatility and performance. Whether used for everyday repeater operation, emergency communications, portable field activities, digital networking, or amateur satellite work, the DA-7X2 delivers a feature set that rivals many significantly more expensive handheld radios.

For operators looking for a single handheld radio that can handle virtually every aspect of modern amateur radio communications, the BTECH DA-7X2 is an excellent investment and a radio that is likely to remain useful for many years to come.

See The Btech DA-7X2 On BaofengTech.com

For many amateur radio operators, DXing represents the pinnacle of the hobby. The excitement of making contact with someone thousands of miles away using nothing more than radio waves is one of the experiences that keeps operators returning to their stations day after day. Whether chasing rare countries, collecting awards, or simply enjoying conversatio…

Read more

For decades, amateur radio has been known primarily as a voice communication hobby. Operators gather on local repeaters, work distant stations on HF, participate in contests, and provide emergency communications during disasters. While voice communication remains one of the foundations of amateur radio, digital communications have become an equally impo…

Read more

The TIDRADIO TD-H9 is one of the most feature-packed handheld amateur radios currently available in the budget price range. At first glance, it almost seems too good to be true. It combines high power output, built-in GPS, APRS capability, Bluetooth programming, wireless cloning, spectrum analysis, SMS messaging, NOAA weather reception, USB-C charging, and multi-band operation into a single handheld that costs significantly less than many competing radios.

The TD-H9 is clearly aimed at amateur radio operators who want premium features without paying premium prices. While there are still some software and firmware refinements being made, the radio delivers an impressive amount of capability for its cost and continues to improve through firmware updates.

First Impressions

The first thing you’ll notice about the TD-H9 is that it feels much more substantial than many inexpensive handheld radios.

The radio has:

• Large full-color display

• Solid construction

• Comfortable grip

• Well-placed buttons

• Dual PTT buttons

• USB-C charging

• Modern user interface

Unlike many entry-level Chinese handhelds that feel inexpensive, the TD-H9 gives the impression of being a much more premium radio.

The color screen is bright, easy to read outdoors, and offers several display layouts and customization options. Firmware updates have added additional interface improvements over time.

Specifications

The TD-H9 includes an impressive feature list:

• Up to 10 watts transmit power

• Multi-band transmit capability

• GPS receiver

• APRS support

• Bluetooth programming

• Wireless cloning

• Frequency spectrum analyzer

• SMS text messaging

• NOAA Weather channels

• AM Airband reception

• FM broadcast receiver

• USB-C charging

• Dual Watch

• Large memory capacity

• Color display

• Firmware upgrade capability

• Dual PTT buttons

• Voice prompts

• Scan functions

• Customizable menus

• Multiple display themes

For a radio in this price category, very few competitors offer this many integrated features.

Build Quality

The TD-H9 feels solid in the hand.

The buttons have good tactile feedback while the rotary knobs operate smoothly. The radio stands upright on a desk without tipping over, which is surprisingly useful during programming or monitoring.

The battery locks securely into place and the antenna connection feels solid.

The overall construction inspires more confidence than many inexpensive handheld radios.

Although not designed for severe abuse like commercial public safety radios, it should easily withstand normal amateur radio use.

Display

The color display is one of the radio’s strongest features.

It provides:

• Excellent brightness

• Easy-to-read frequency display

• Dual VFO operation

• Battery information

• GPS information

• APRS status

• Menu navigation

• Signal strength

• Channel names

Users can customize colors and display layouts to match their preferences.

The menu system is considerably more modern than many older handheld radios.

Multi-Band Capability

One of the biggest attractions of the TD-H9 is its expanded frequency coverage.

Besides standard amateur VHF and UHF operation, the receiver also includes:

• AM Airband

• NOAA Weather

• FM Broadcast radio

This makes it useful as both a communication radio and a monitoring receiver.

Pilots obviously cannot transmit on aviation frequencies, but listening to local airport traffic can be educational and entertaining for licensed amateur operators.

GPS Performance

The built-in GPS is one of the radio’s headline features.

Having GPS integrated into the handheld eliminates the need for external GPS modules commonly required with older APRS equipment.

The GPS enables:

• Position reporting

• APRS tracking

• Navigation assistance

• Location sharing

Cold-start satellite acquisition can vary depending on conditions, but firmware updates have improved reliability and sensitivity since launch.

APRS Capability

For many amateur radio operators, APRS is the biggest reason to purchase this radio.

The TD-H9 includes integrated:

• GPS

• APRS transmit

• APRS receive

• Position beaconing

• Station tracking

Unlike older handhelds that require additional cables and external TNC hardware, everything needed for basic APRS operation is already inside the radio.

This makes portable tracking much easier.

For hiking, emergency communications, public service events, and road trips, integrated APRS is a major advantage.

However, APRS configuration is not always intuitive. Some advanced APRS functions continue to improve through firmware updates.

Bluetooth Programming

Bluetooth programming is one of the TD-H9’s standout features.

Instead of carrying programming cables everywhere, users can configure the radio wirelessly.

Benefits include:

• Channel editing

• Frequency programming

• Memory management

• Settings changes

• Firmware updates

• Wireless cloning

This makes programming considerably more convenient, especially in the field.

Spectrum Analyzer

Very few handheld radios in this price class include a built-in spectrum analyzer.

The spectrum display allows operators to:

• Identify busy frequencies

• Locate clear channels

• Observe nearby radio activity

• Improve frequency selection

While it is not comparable to laboratory-grade equipment, it is a genuinely useful tool for everyday amateur radio operation.

SMS Messaging

The TD-H9 supports text messaging between compatible radios.

Although this feature will not replace smartphones, it can be useful when:

• Voice communication is difficult

• Quiet operation is preferred

• Short messages need to be exchanged

• Emergency coordination is required

This is another feature rarely found on radios in this price range.

NOAA Weather Reception

NOAA Weather reception is excellent.

Users can quickly monitor:

• Weather forecasts

• Storm warnings

• Tornado watches

• Hurricane information

• Emergency weather alerts

For emergency preparedness, this is a valuable feature.

Audio Quality

Receive audio is generally loud and clear.

The speaker produces enough volume for outdoor use while maintaining understandable speech.

Transmit audio reports from users have generally been favorable with natural voice quality.

Like any handheld, audio quality can improve further when using a quality external speaker microphone.

Battery Life

Battery performance is respectable considering the radio’s capabilities.

Normal mixed use easily lasts through a typical operating day.

Heavy GPS and APRS operation naturally increases power consumption.

USB-C charging makes topping off the battery extremely convenient without requiring the desktop charger.

Programming

Programming options include:

• Bluetooth

• Windows software

• Front panel

• Wireless cloning

The flexibility is excellent.

The radio currently relies on the manufacturer’s software ecosystem rather than universal support from every third-party programming application.

Real World Performance

In everyday operation, the TD-H9 performs very well.

It is suitable for:

• Local repeaters

• Simplex communication

• Emergency communications

• Portable operations

• Hiking

• Camping

• Public service events

• APRS tracking

• Weather monitoring

• Airband listening

Its combination of high power, GPS, APRS, and Bluetooth makes it one of the more versatile handheld radios available at its price point.

Advantages

The TD-H9 offers numerous strengths:

• Outstanding value

• Excellent feature set

• Built-in GPS

• Integrated APRS

• Bluetooth programming

• Wireless cloning

• Spectrum analyzer

• USB-C charging

• Bright color display

• Good audio quality

• High transmit power

• Airband reception

• NOAA Weather

• SMS messaging

• Firmware updates that continue to improve the radio

Disadvantages

No radio is perfect.

Potential drawbacks include:

• APRS setup can be more complex than expected.

• Some advanced APRS features have required firmware improvements.

• The programming ecosystem is more limited than radios with broad CHIRP support.

• Firmware updates may be necessary to obtain the best experience.

• Bluetooth audio features have some functional limitations.

Who Should Buy the TD-H9?

The TD-H9 is an excellent choice for:

• New amateur radio operators

• Experienced hams wanting APRS

• Emergency communication volunteers

• Outdoor enthusiasts

• Storm spotters

• Search and rescue volunteers

• Preppers

• Portable operators

• Travelers

• Anyone wanting advanced features without spending several hundred dollars

Those who require highly polished, commercial-grade firmware for intensive APRS use may prefer more expensive alternatives, but many users will find the TD-H9 offers exceptional capability for the money.

Final Verdict

The TIDRADIO TD-H9 is one of the most ambitious budget handheld radios currently available. It combines high transmit power, built-in GPS, APRS, Bluetooth programming, a spectrum analyzer, USB-C charging, SMS messaging, NOAA weather reception, and a modern color display into an affordable package.

Its early firmware versions showed that some advanced features, particularly APRS, were still maturing, but ongoing updates have improved stability and functionality. For most amateur radio operators, the TD-H9 delivers an impressive balance of innovation, versatility, and value.

Overall Rating: 4.5 out of 5 Stars

The TD-H9 stands out as one of the best feature-rich handheld amateur radios in its price class, especially for operators interested in APRS, GPS, and modern wireless programming. While there is still room for software refinement, the hardware is capable and the feature set is difficult to match at a similar cost.

See The Tidradio TD-H9 On Amazon!

For many amateur radio operators, a scanner is just another tool in the communications toolbox. Whether monitoring local public safety agencies, weather broadcasts, aviation, railroads, or other radio services, scanners provide valuable information and help operators stay informed during both everyday situations and emergencies.

One question that often c…

Read more

One of the most enjoyable aspects of amateur radio is setting personal goals. While simply making contacts can be rewarding, many operators find additional motivation by working toward amateur radio awards. These awards recognize operating achievements, technical skill, dedication, and persistence. Whether you enjoy chasing distant stations, operating f…

Read more

The QUANSHENG TK11(8) Taiko Kong is one of the most ambitious handheld amateur radios to reach the market in recent years. Rather than simply being another dual-band VHF/UHF handheld, the TK11(8) attempts to combine the functionality of several different radios into a single portable device. It offers wideband reception from 0.153 MHz to 1160 MHz, multiple amateur transmit bands, AM, FM, and SSB reception, a built-in spectrum analyzer, NOAA weather alerts, dual watch capability, and a variety of advanced features typically found on much more expensive equipment.

For amateur radio operators who enjoy experimenting, monitoring multiple services, and carrying one radio instead of several, the TK11(8) is an impressive and innovative option. While it offers a remarkable feature set for its price, it also has a few limitations that buyers should understand before making a purchase.

Design and Build Quality

The TK11(8) immediately feels more substantial than many budget handheld radios. The metal front panel gives it a rugged appearance while also adding durability. Combined with the larger battery and ergonomic design, the radio feels well-built and comfortable to hold.

Notable design features include:

• Metal front construction

• Large color display

• Dual PTT buttons

• Rugged keypad

• USB-C charging

• Desktop charging cradle

• Large 3000mAh battery

• Dual antenna design

• Approximately 300-gram operating weight

Although it is larger than many traditional handheld transceivers, the additional size allows for a larger battery, improved receiver design, and expanded functionality.

Frequency Coverage

One of the biggest attractions of the TK11(8) is its extremely wide frequency coverage.

Receive Coverage

The receiver covers approximately:

• 153 kHz to 1160 MHz

This allows reception of:

• Longwave

• AM Broadcast

• Shortwave

• CB Radio

• Amateur HF

• 6 Meters

• Airband

• Marine frequencies

• VHF

• UHF

• NOAA Weather Radio

• Commercial radio services

• Many additional utility frequencies

Supported receive modes include:

• AM

• FM

• Wide FM

• Single Sideband (SSB)

Very few handheld radios offer this level of receive capability.

Transmit Coverage

The TK11(8) supports transmission on multiple amateur radio bands including:

• 10 Meters

• 6 Meters

• 2 Meters

• 70 Centimeters

Maximum transmit power reaches approximately 10 watts on VHF and UHF, while lower power is available on the lower frequency bands.

This provides considerably more flexibility than a traditional dual-band handheld.

Receiver Performance

Receiver performance is one of the strongest aspects of this radio.

It can monitor a wide variety of radio services including:

• Shortwave broadcasts

• Amateur HF communications

• Aircraft communications

• NOAA Weather Radio

• Local repeaters

• Public service frequencies where legal

• FM broadcast stations

The addition of SSB reception allows operators to monitor HF amateur activity without carrying a dedicated shortwave receiver.

Like all handheld radios, HF reception depends heavily on the antenna being used. While the supplied antenna performs reasonably well, connecting an external HF antenna significantly improves reception.

Strong local signals are received very clearly, while weaker HF stations benefit from improved antennas and favorable propagation conditions.

Spectrum Analyzer

One of the most impressive features of the TK11(8) is its integrated spectrum analyzer.

Instead of blindly scanning frequencies, users can visually see nearby radio activity.

This feature is useful for:

• Finding active repeaters

• Locating interference

• Identifying occupied frequencies

• Exploring local RF activity

• Quickly locating active signals

Spectrum analyzers are typically found only on much more expensive equipment, making this an outstanding addition.

Dual Watch

The radio supports simultaneous monitoring of two frequencies.

This allows operators to:

• Monitor a repeater while listening to simplex

• Keep track of weather broadcasts

• Monitor emergency channels

• Follow multiple conversations simultaneously

Dual Watch is especially useful during public service events and emergency communications.

Smart Code Breaker

The Smart Code Breaker automatically identifies unknown:

• CTCSS tones

• DCS codes

This makes programming repeaters significantly easier.

Instead of manually testing numerous tone combinations, the radio can quickly determine the correct access tone.

This feature is particularly valuable for newer amateur radio operators.

NOAA Weather Alerts

The built-in NOAA Weather Alert feature makes the TK11(8) an excellent choice for emergency preparedness.

The radio can monitor NOAA Weather Radio and alert users when severe weather warnings are issued.

This is useful for:

• Camping

• Hiking

• Storm spotting

• Emergency communications

• Disaster preparedness

Having weather alerts integrated into the radio eliminates the need to carry a separate weather receiver.

Audio Quality

Audio quality is very good for a handheld radio.

Receive audio is clear and loud thanks to the front-mounted speaker.

Transmit audio has generally been reported as clean and easy to understand on local repeaters and simplex communications.

SSB and AM reception also provide surprisingly good audio quality considering the compact size of the radio.

Programming

Programming can be performed through:

• Front panel keypad

• Computer programming software

The radio supports approximately:

• 999 memory channels

• Flexible scanning options

• Custom channel organization

• Extensive menu customization

While the software continues to improve, it provides access to many advanced configuration options.

Battery Life

The included 3000mAh battery provides excellent operating time.

Typical users can expect:

• A full day of normal operation

• Many hours of continuous scanning

• Long standby times

USB-C charging makes recharging extremely convenient.

The radio can be charged using:

• Power banks

• Vehicle USB adapters

• Solar charging systems

• Standard USB wall chargers

This flexibility makes it particularly useful for portable and emergency operations.

Emergency Communications

The TK11(8) is well suited for emergency communication kits.

Its features include:

• Wideband monitoring

• NOAA weather alerts

• Long battery life

• USB-C charging

• Spectrum analyzer

• Dual Watch

• High transmit power

• Compact portable design

Emergency communicators can monitor multiple radio services from a single handheld.

Advantages

• Extremely wide receive frequency coverage

• AM, FM, Wide FM, and SSB reception

• Built-in spectrum analyzer

• 10-watt transmit power

• Large 3000mAh battery

• USB-C charging

• Dual Watch capability

• Smart Code Breaker

• NOAA Weather Alerts

• Large memory capacity

• Excellent overall value

• Rugged construction

Disadvantages

• HF reception is limited by the included handheld antenna

• Programming software is still developing

• Larger and heavier than most handheld radios

• Does not replace a dedicated HF base station

• Advanced features may require some learning for beginners

Who Should Buy It?

The TK11(8) is an excellent choice for:

• Amateur radio operators

• Radio experimenters

• Emergency preparedness enthusiasts

• Shortwave listeners

• Scanner hobbyists

• Field operators

• Outdoor adventurers

• Radio collectors

Its combination of wideband receive capability and multi-band transmit functionality makes it one of the most versatile handheld radios currently available.

Who Should Look Elsewhere?

Operators who primarily use HF voice communications may still prefer a dedicated HF transceiver with higher transmit power and improved filtering.

Likewise, users who only need a simple VHF/UHF handheld for local repeaters may find a less expensive radio better suited to their needs.

Final Verdict

The QUANSHENG TK11(8) Taiko Kong is one of the most feature-rich handheld amateur radios available today. It combines wideband reception, multi-band amateur transmission, AM/FM/SSB reception, a built-in spectrum analyzer, NOAA weather alerts, USB-C charging, Dual Watch, Smart Code Breaker, and a large battery into a single portable package.

Its greatest strength is versatility. Very few handheld radios can monitor everything from longwave broadcasts and shortwave stations to aviation, NOAA weather, amateur HF, VHF/UHF, and many other radio services while also providing advanced diagnostic tools like a built-in spectrum analyzer.

Although it cannot fully replace dedicated HF equipment and still has some software limitations, the TK11(8) delivers an impressive combination of innovation, performance, and value.

For amateur radio operators who enjoy exploring the radio spectrum and want one handheld capable of performing a wide variety of tasks, the QUANSHENG TK11(8) Taiko Kong is an outstanding choice and one of the most exciting portable transceivers currently available.

See The Quansheng TK11 On Amazon!

Whether you are preparing for emergencies, participating in public service events, operating from a campground, activating a park for Parks on the Air (POTA), or simply enjoying portable amateur radio, a well-designed ham radio go box can become one of the most valuable pieces of equipment you own. A go box keeps everything organized, protected, and rea…

Read more
